MSE PRO Composite Salt Dry And Wet Test Machine
SKU: MA3388

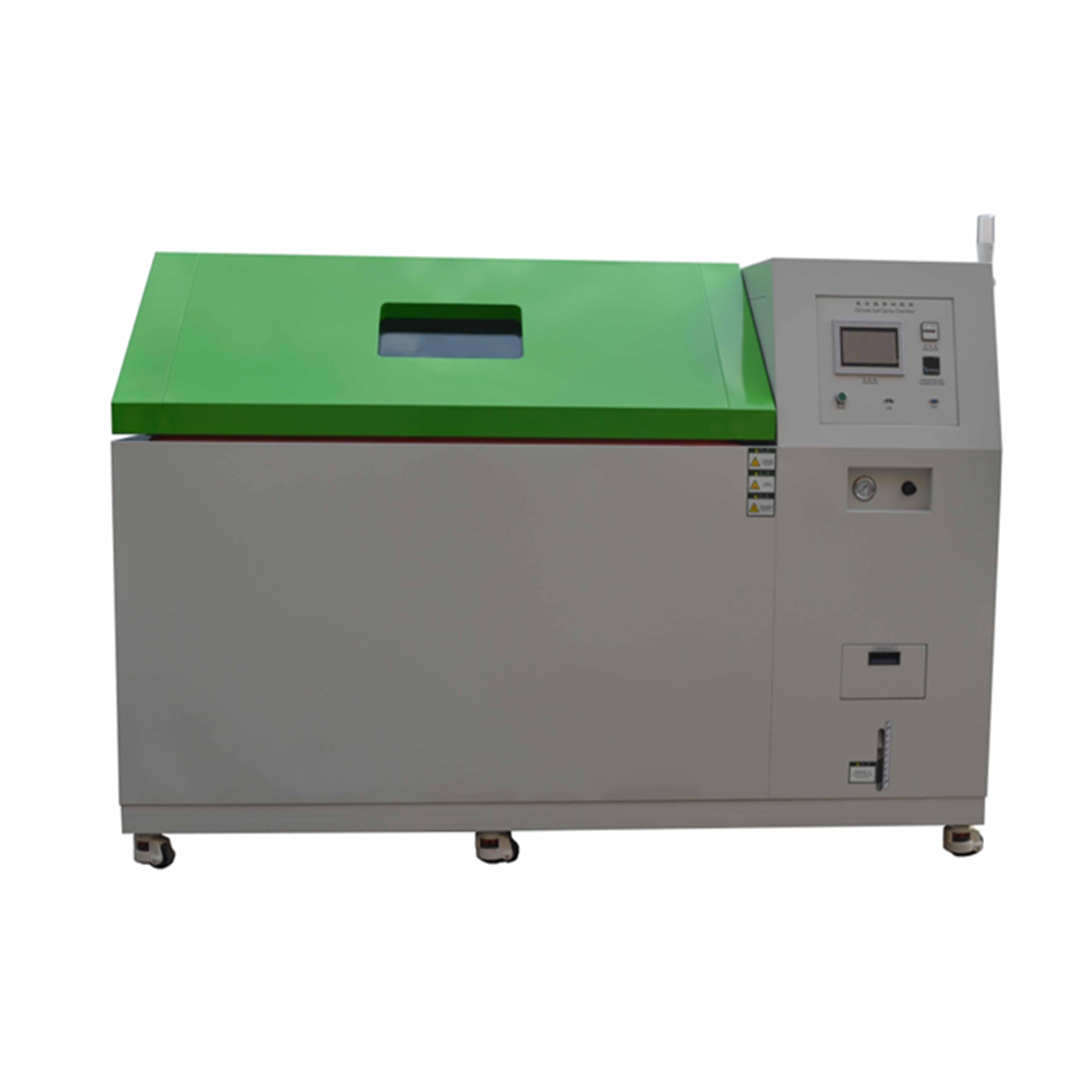

MSE PRO™ Composite Salt Dry And Wet Test Machine
The MSE PRO™ Composite Salt Dry And Wet Test Machine is designed to simulate and enhance the effects of salt pollution and accelerated corrosion in outdoor environments. The corrosion of protected and unprotected metal materials is influenced by numerous environmental factors, primarily depending on the type of metal and the environment. It is impractical to design laboratory accelerated corrosion tests that encompass all environmental factors affecting corrosion resistance. Therefore, laboratory tests are designed to simulate the key factors influencing the corrosion of metal materials. The equipment includes methods for cyclic exposure of samples to salt spray, dry, and humid heat conditions. This equipment is a comparative test, and its results cannot predict the long-term corrosion resistance of the same metal material under similar environmental conditions. However, this method still provides valuable information about the performance of materials exposed to salt pollution similar to the test conditions. Compared with traditional accelerated corrosion tests, such as the Neutral Salt Spray Test (NSS), Acetate Salt Spray Test (AASS), and Copper Acetate Salt Spray Test (CASS), this equipment offers the greatest advantage in better reproducing the corrosion that occurs in outdoor salt pollution environments. 2. The accelerated corrosion test of this equipment is applicable to: metals and their alloys, metal coatings (anodic and cathodic), conversion coatings, anodized coatings, organic coatings on metal materials, etc.
Brand: MSE PRO™
Manufacturer: MSE Supplies LLC
MSE Supplies offers a variant of Salt Dry and Wet Test Machine. Please contact us for more information.
Specifications:
| 1. Volume, weight, size and specification model | ||
| Product name | Composite salt dry and wet test machine | |
| Product model | MA3388 | |
| Inner volume | 432L Note: The volume of the top sloping roof is not included | |
| Inner chamber size(mm) |
900×800×600 W×H×D Note: The top slope is 375mm high | |
| External space (mm) | About 2100×1500×1250 W x H x D, excluding the size of the salt watertank | |
| Salt tank size (mm) | Φ600×H730， capacity 200L | |
| Net weight | About 450kg | |
| 2. Equipment power, current and power supply | ||
| Total watt of machine | The total installed power is 16.6KW, and the maximum operating power is 10.6KW | |
| Max current | 16A | |
| Power supply mode | AC 380 three phases four wires + grounding wire; The allowable fluctuation of voltage is ±10%V; The allowable fluctuation of frequency is 50±0.5Hz; The grounding resistance of the protective earth wire is less than4Ω; TN-S mode power supply or TT mode power supply Users are required to configure the corresponding capacity of air or power switch for the equipment at the installation site, and this switchmust be used independently for the equipment |
|
| 3. Main technical parameters of the equipment | ||
| Device functions | Salt spray test mode, condensate water test mode and humid heat mode (including dry and humid) can be switched freely, and can be combined with program test or single function test | |
| Control Accuracy | Temperature resolution: 0.01℃ Humidity resolution: 0.1%R.H Temperature deviation: ≤±2.0℃ Humidity deviation: humidity ≥75%RH, ≤+2-3%R.H; humidity＜75%RH, ≤±5%R.H; Temperature uniformity: ≤2℃ Humidity uniformity: humidity≥75%RH, ≤+2-3%R.H; humidity＜75%RH, ≤±5%R.H Temperature fluctuation: ±0.5℃ Humidity fluctuation: ±2%R.H Note: The temperature uniformity and deviation are measured under the condition of ambient temperature +25℃, relative humidity 85%R.H. and no sample. |
|
| Salt spray test function and parameters | temperature range |
The ambient temperature can be adjustedto~55℃ |
| salt spray deposition | 1~2ml/(h·80cm2) is adjustable (the average value is collected after 16 hours) Note: The monitoring point of spray amount is located in the plane where the bottom surface of the studio is 1/3 of the height of the studio and the upper surface of the collector, and the distance from the inner wall of the equipment is 150mm |
|
| uniformity of salt spray deposition | 1.5±0.5ml/(h·80cm2) (collecting more than16hours); | |
| spray method | Continuous/gap program setting is available, with quantitative control function. | |

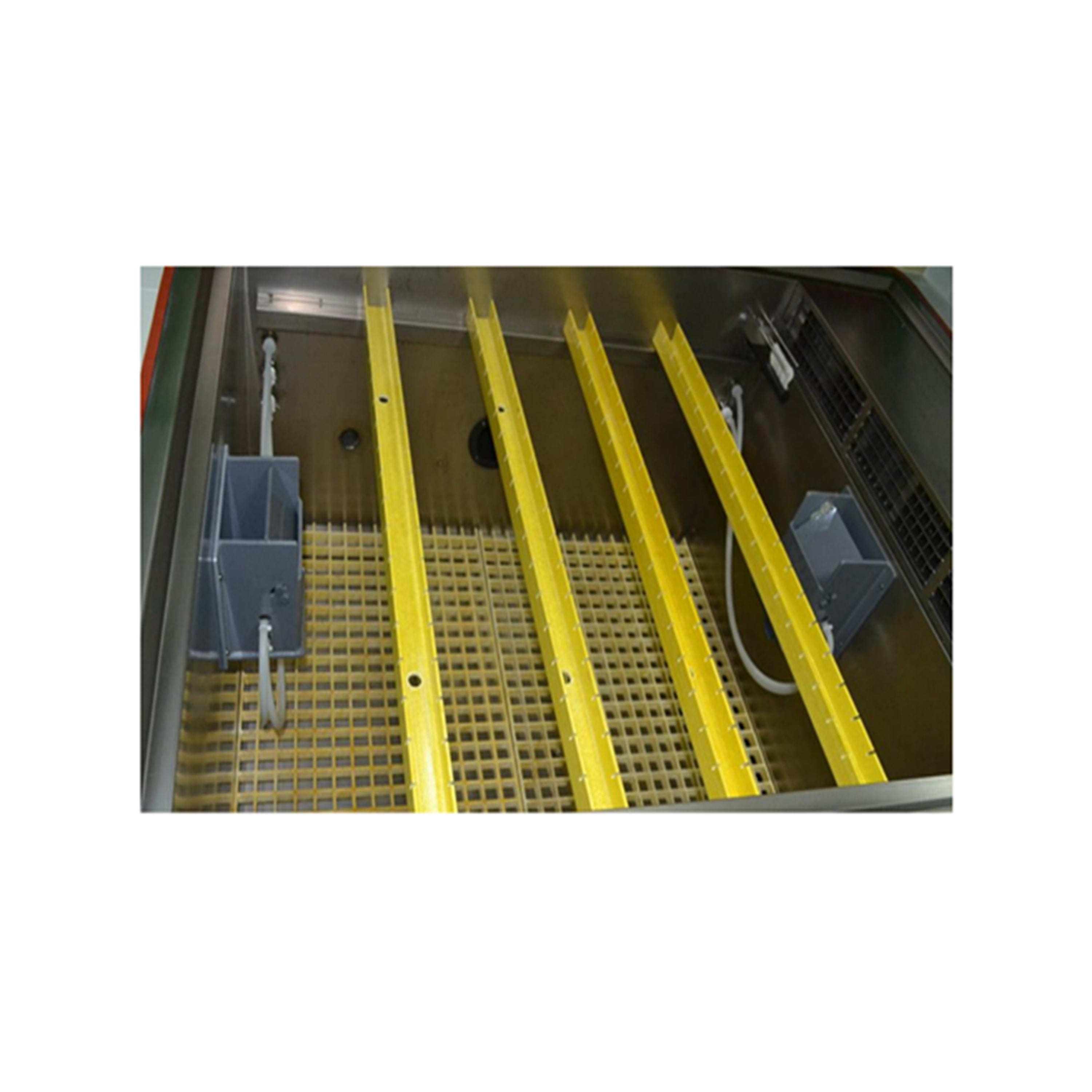

| spray system | The salt tank is equipped with a filter that can be cleaned and reused; each nozzle can be adjusted to the Angle, can be disassembled, can be cleaned; | |
| salinity concentration | 5%±1% or specified value | |
| saline PH | Neutral 6.5~7.2, acid 3.0~3.2 | |
| saturation temperature range | ambient temperature can be adjusted to ~70℃; | |
| spray pressure | 70～170Kpa | |
