MSE PRO Compact Arc Melting Furnace
SKU: MA0065554

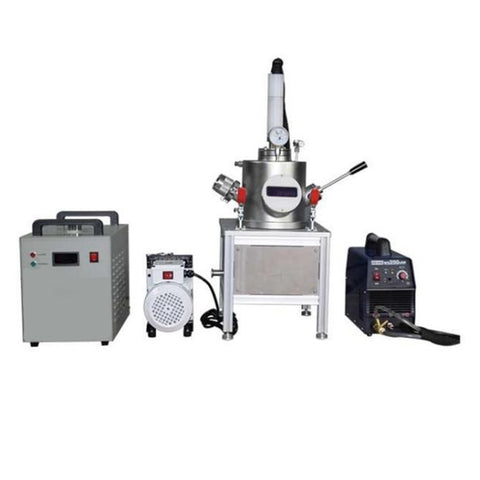

MSE PRO™ Compact Arc Melting Furnace
MSE PRO™ Compact Arc Melting Furnace uses tungsten electrode and water-cooled copper crucible, melting temperature can be up to 3500 ℃, and the temperature drops rapidly. The chamber can be filled with a high-purity inert protective gas, and the metal is melted by the high-temperature plasma generated by the arc. Multi-station copper crucible can be used for melting a variety of small amounts of metal in sequence. With the side operating handle, it can be turned after melting. The melting furnace is also equipped with a vacuum suction casting mold. A cylindrical metal sample can be made for subsequent cutting, clamping, analysis and other operations.
Specifications:
| Model | MA0065554 |
| Input power supply | Three-phase AC380V, 60Hz, ~7KW |
| Melting temperature | Up to 3500 ℃ |
| Chamber material | Stainless steel |
| Cooling method | Water-cooled chamber, electrode and copper crucible |
| Chamber dimension | O.D. φ200 mm * H.180mm |
| Observation window | Diameter 40mm |
| Crucible | Standard configuration with 5 stations, each station can melt max. 30g (Fe) |
| Inlet interface | 1/4 inches quick-plug interface |
| Inlet valve | Stainless steel needle valve |
| Pumping interface | KF25 |
| Vacuum system | 1.1L/s two-stage rotary vane pump, vacuum degree 10Pa |
| Arc melting cathode device | High-frequency arc ignition |
| Arc gun electrode (cathode) | Tungsten needle |
| Protective atmosphere | High purity Argon gas (5N) |
MSE Supplies offers a variety of Arc Melters and accessories, to suit different applications and requirements. Please contact us to discuss your needs.
