MSE PRO Basic Digital Distribution Peristaltic Pump
SKU: LS0339

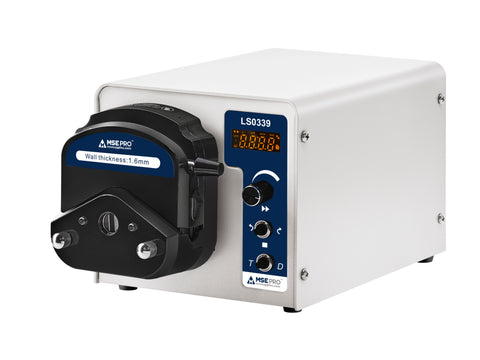

MSE PRO™ Basic Digital Distribution Peristaltic Pump
MSE Supplies offers Digital Distribution Peristaltic Pumps. The series comprises with dual operating modes: distribution and transmission. It allows users to preset parameters such as the number of distributions and distribution time for added convenience. Featuring a 4-digital LED display, it shows current flow or speed and includes a suction back function. Additional functions include power-off memory and intelligent calibration. It supports communication via the Rs485/MODBUS protocol, analog control, and foot control.
Order Peristaltic Pump Tubing Through MSE Supplies HERE!
This Peristaltic Pump comes with YZ1515x pump head and 2 meters of 17# silicon tube (ID: 6.4mm and WT: 1.6mm) as standard accessory. For additional tubes/pump heads beyond the standard configuration, please contact us for more detail.
Features:
- Full-speed function: Press the knob to run at full speed, used for quickly emptying or filling the pump tube.
- Back suction function: In distribution mode, the pump can be programmed to reverse after stopping to prevent liquid dripping.
- Power outages save feature: Automatically saves control parameters during power outages.
- Multiple modes: Provides distribution and transmission modes, making it easy to use.
- Adaptable to multiple pump heads: Can be installed with pump heads from YZ series, TX series (optional), DG series (optional), and others to meet various flow requirements.
- External control function: Supports RS485/MODBUS communication protocol, analog control, and foot switch control.
Technical Specifications:
| SKU# | LS0339 |
| Speed range | 0.1~100rpm (reversible) |
| Speed resolution | 0.1rpm |
| Max flow rate | 0.0015~380mL/min (18# tube) |
| Speed mode | Digital knob adjust the speed |
| Timing range | 0.1s-9999mins |
| Back suction angle | 10°~720° (0° means no back suction) |
| Back suction speed | 10-100rpm |
| Pump Head | YZ1515x |
| Standard tube accessory |
Length: 2 m Inner Diameter: 6.4 mm (17#) |
| Display Mode | 4-LED display |
| Power Supply | AC 110V |
| Power Consumption | ＜22W |
| Environment Temperature | 0~40℃ |
| Drive Size | 234×154×144.3mm |
| Drive Weight | 3.98kg |
| IP Grade | IP31 |
| Working Mode | Distribution / Transmission mode |
Flow Rates for Different Tubing Compatible with the YZ1515x Pump Head
| Tubing size (ID x Wall thickness) | Min. flow rate (0.1 rpm) | Max. flow rate (100 rpm) |
| 0.8 mm x 1.6 mm (13#) | 0.007 mL/min | 7 mL/min |
| 1.6 mm x 1.6 mm (14#) | 0.027 mL/min | 27 mL/min |
| 2.4 mm x 1.6 mm (19#) | 0.051 mL/min | 51 mL/min |
| 3.1 mm x 1.6 mm (16#) | 0.082 mL/min | 82 mL/min |
| 4.8 mm x 1.6 mm (25#) | 0.17 mL/min | 170 mL/min |
| 6.4 mm x 1.6 mm (17#) | 0.29 mL/min | 290 mL/min |
| 7.9 mm x 1.6 mm (18#) | 0.38 mL/min | 380 mL/min |
