Ar Glovebox Compatible Fast Pneumatic Crimper for CR20XX Series Coin Cells - MSE Supplies LLC

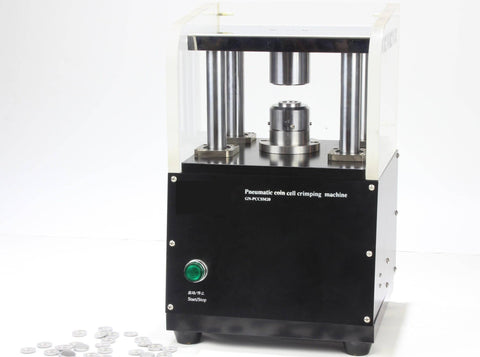

MSE PRO Ar Glovebox Compatible Fast Pneumatic Crimper for CR20XX Series Coin Cells

  • $ 2,99500


Specifications:

MSE Supplies offers a compact fast pneumatic crimper for sealing CR20XX series coin cells. It can be driven by compressed inert gas or air. Benefiting from its compact design, it can be easily transferred via glove box chamber and compatible with Ar glove box when driven by Ar gas. Compared with hydraulic and electrical crimpers, it has fast sealing rate (350~550 pcs per hour) and less contamination.

Product Features:

  • Compact design
  • Ar glove box compatible
  • No need for electricity
  • Less contamination compared with hydraulic crimper
  • Faster sealing rate (350~550 pcs per hour) compared with electrical crimper
  • Optional crimping dies (CR1220, CR23XX, CR24XX, AG3 and AG13) available with additional cost

MSE Supplies is a US-based leading supplier of battery research materials and equipment with thousands of customers worldwide.

    Product SKU #

    BR0244A

    Driven Type Pneumatic
    Gas Pressure 0.6~1.0 MPa (Don't exceed 1.0 MPa)
    Sealing Rate 350~550 pcs per hour
    Weight 77 lbs (35kg)
    Dimensions 16.1'' L x 10.2'' W x 9.8'' H (410x260x250 mm)
    Warranty One year limited warranty with lifetime product support
    Note
    • Clean the die with ethanol after each use
    • Pressure not exceed 1.0 MPa
    • Don't crimp without coin cell case
    • Use Ar or N2 as driven gas for glove box use

    If you name MSE Supplies in your published journal paper or conference abstract, we can offer an one-time 5% discount toward your next purchase.
