5 x 10 mm (20-21) Plane N-type undoped Free-Standing Gallium Nitride (GaN) Single Crystal,  MSE Supplies

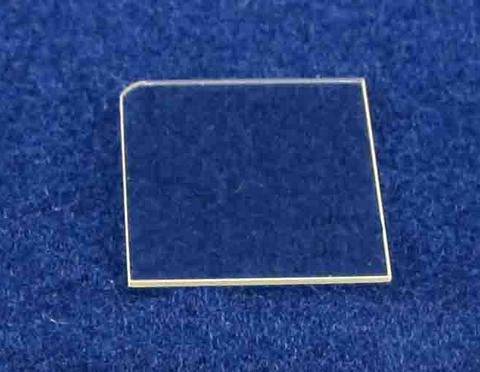

MSE PRO 5 x 10 mm (20-21) Plane N-type undoped Free-Standing Gallium Nitride (GaN) Single Crystal

  • $ 62595
  • Save $ 7600

Bulk orders? Please contact us for Bulk Quotation.

Qty (Each) Price (Each)
1 - 1 $ 625.95
2 - 10 $ 605.95
11 - 11+ $ 595.95

Product #: WA0234
  • Orientation: (20-21) plane
  • Conductivity type: N-type undoped
  • Dimension: 5.0 mm x 10 mm +/- 0.2 mm
  • Thickness: 350 +/- 25 um
  • Usable area: > 90%
  • Total Thickness Variation: <15 um
  • Bow: <20 um
  • Resistivity (300K): <0.5
  • Carrier Concentration: 1e17cm-3
  • Mobility: 500 cm2/V*s
  • Dislocation Density: < 5x105 cm-2
  • Polishing: front surface Ra < 0.5 nm. Epi-ready polished. back surface fine ground.
  • Package: packaged in a class 100 clean room environment, in single wafer containers, under nitrogen atmosphere.

Related References

1. GaN grown in polar and non-polar directions
