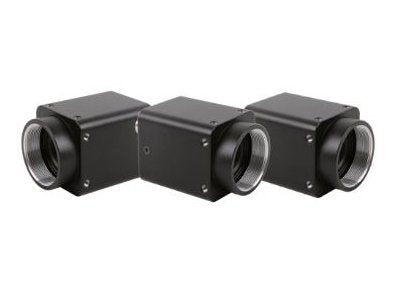

MSE PRO 400nm-1700nm USB3.0 NIR Camera (0.33M/IMX991 (M, GS) 1/1.4" Without TEC)
SKU: OPC072
MSE PRO™ 400nm-1700nm USB3.0 NIR Camera (0.33M/IMX991 (M, GS) 1/1.4" Without TEC)
MSE PRO™ provide 400nm-1700nm USB3.0 NIR Camera (0.33M/IMX991 (M, GS) 1/1.4" Without TEC).
Key Features
- SONY SenSWIR InGaAs sensor
- Precise temperature control, the temperature difference can reach 10-25 degrees Celsius
- Spectral response range: 400nm-1800nm
- 5um pixel size
- Global shutter
- Supportinterface: USB3 / GigE / MIPI(developing) / CameraLink(developing)
- 12-bit ADC
- 4Gb memory
- Support external IO trigger control
-
High framerate exceeding official parameters
| SKU | OPC072 |
| Image Sensor |
0.33M/IMX991(M,GS) 1/4”(3.20x2.56) |
| Pixel(μm) | 5x5 |
|
G Sensitivity Dark Signal |
121mV with 1/30s 1.0mV with 1/30s |
| Data interface | USB3.0 |
| FPS/Resolution |
428.1@640x512 227.7@320x256 |
| Binning |
1x1 1x1 |
|
Exposure Dimensions |
15us~60s 33mm |
| General Parameters | |
|---|---|
| Sensor model | Sony IMX991-AABJ-C |
| Sensor type | InGaAs |
| Spectral range | 400nm-1800nm |
| pixel size | 5.0 µm x 5.0 µm |
| Target size | 1/4” |
| ADC | 12 Bit / 8 Bit |
|
Frame Rate & Resolution |
8 Bit:428.1fps@640 x 512、 807fps@320 x 256 12 Bit:227.7fps@640 x 512、 429.3fps@320 x 256 |
| Image Buffer | 512MByte |
| Conversion gain | 43.0e/ADU |
| Conversion gain | 59.6dB |
| Read noise | 178.8e |
| Full well charge | 176.2ke |
| Maximum SNR | 52.5dB |
| Sensitivity | 121mV |
| Dark current | 638e/s(20°C) |
| Gain range | 1x-15x |
| Exposure time range | 15µs-60sec |
| Shutter mode | Global shutter |
| Binning | Software2x2，3x3，4x4 |
| Data interface | USB3.0 |
|
Digital I/O |
1 optocoupler isolated input, 1 optocoupler isolated output， One optical-coupling isolated input |
| Data Format | 8bit / 12bit |
| Optical filter | 400-1800nm(default); 1030-1800nm(optional) |
| CRA | 2.35 Deg |
| General Specifications | |
| Power supply | Power with USB3.0 or 12V Power adapter |
| Power consumption | <2.11W |
| Temperature | Working temperature -20~60℃, storage temperature -40~85℃ |
| Humidity | 20%-80% , non-condensing |
| Size and Weight | 33mm×33mm×38mm，70g |
| Lens mount | C-mount interface |
| Software | ToupView/ SDK |
| Operating system | Win32/WinRT/Linux/macOS/Android |
MSE Supplies offers a variety of Scientific-Grade Cameras. Please contact us for more information.
