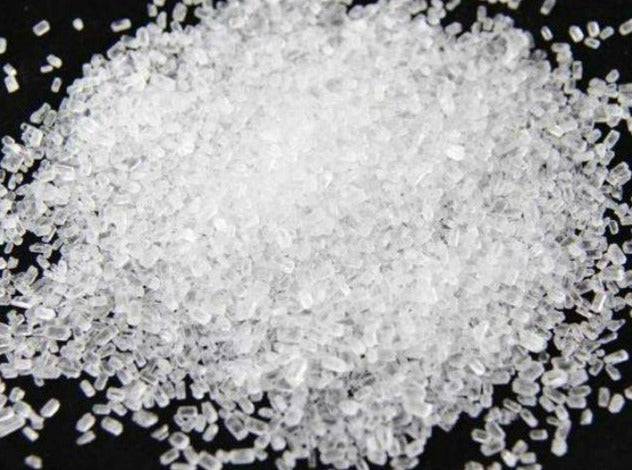

3N5 (99.95%) Magnesium Oxide (MgO) Pieces (1-3mm) Evaporation Materials - MSE Supplies LLC

MSE PRO 3N5 (99.95%) Magnesium Oxide (MgO) Pieces (1-3mm) Evaporation Materials

SKU: TA2718

  • $ 19795
  • Save $ 2400

MSE PRO™ 3N5 (99.95%) Magnesium Oxide (MgO) Pieces (1-3mm) Evaporation Materials

Magnesium oxide (MgO) is a traditional raw material for use in a wide range of products such as refractory, paints, paper, plastics, rubber, oil, pharmaceutical, fertilizer and animal feed. More recently, it is being used as an additive in superconductor products, waste treatment agent for neutralizing acids or cleaning water and as a catalyst material. A thin layer of evaporation MgO is used as buffer layer between superconductor and substrate. MgO coating is also used to improve the performance as a cathode material for Li-ion batteries at elevated temperatures and to improve corrosion resistive behavior of Mg alloys and steels.

The dimensions and purities can be customized upon request. Please contact us for customization or bulk orders.

Name Magnesium Oxide
SKU # TA2718 (50 g); TA2719 (100 g)
Symbol MgO
CAS # 1309-48-4
Molecule weight (g/mol) 40.30
Color/Appearance White, Crystalline Solid
Purity 99.95%, 3N5
Melting Point (°C) 2,852
Theoretical Density (g/cm3) 3.58
Refractive Index 1.736
Solubility Soluble in HCl and dilute acids. Insoluble in water and ethanol.
Z Ratio 0.411
E-Beam Good
Thermal Evaporation Techniques Crucible:  C, Al2O3
E-Beam Crucible Liner Material Graphite
Temp. (°C) for Given Vap. Press. (Torr) 10-4: 1,300
Comments Evaporates in 10-3 Torr O2 for stoichiometry.

MSE Supplies offers a variety for crucibles for material evaporation. We can customize the dimensions based on your need.


1. Epitaxial growth of MgO on (100) GaAs using ultrahigh vacuum electron‐beam evaporation. Applied Physics Letters 60, no. 25 (1992): 3129-3131.

2. MgO nanostructures synthesized by thermal evaporation. Materials Science and Engineering: C 26, no. 5-7 (2006): 1097-1101.
