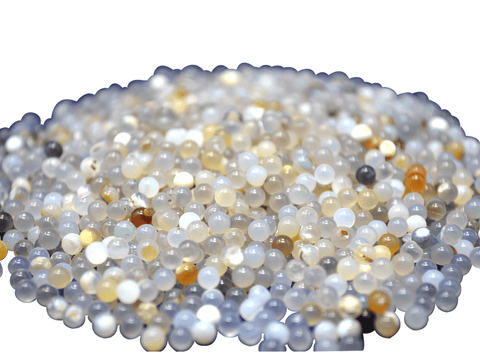

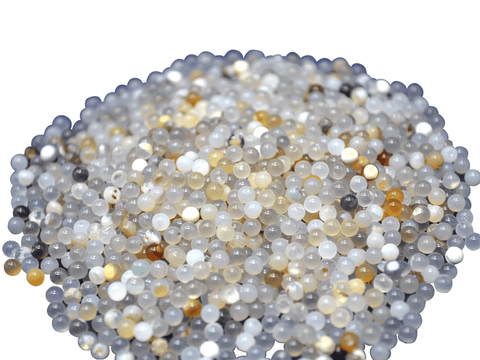

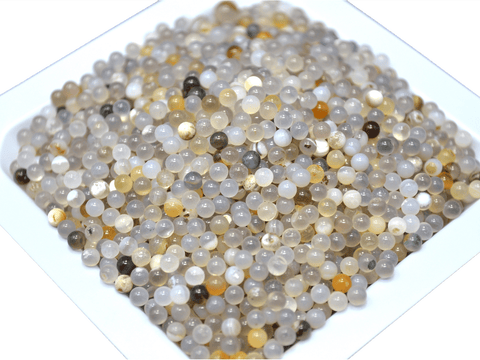

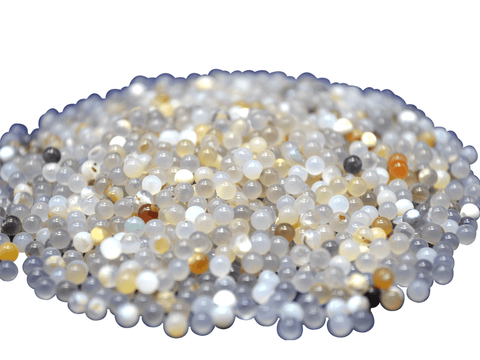

MSE PRO 3 mm Agate Milling Media Balls, 1 kg

SKU: BA0301

  • $ 15995
  • Save $ 2000



Natural Brazilian Agate Grinding Media Balls

  • Density: 2.65g/cm3
  • Shape: sphere
  • Available Diameter: 3mm~30mm

Description for 3 mm Agate Milling Media

  • Specifications
High purity natural Brazilian agate (97.26% SiO2) grinding media balls, highly wear-resistant and resistant to acids (except HF) and solvent, these balls are used whenever small quantity of samples need to be grinded without contamination. Different sizes of agate grinding balls available: 3mm to 20mm. The grinding media balls are extensively applied to in the fields of Ceramics, Electronics, Light Industry, Paint, Ink, Medicine, Food, Geology, Chemical Engineering and so on.
  • Features
  1. High purity, low contamination to the samples
  2. High cost-effective, low wear and long lifetime
  3. High specific gravity, high grinding efficiency
  4. Highly wear resistant to acid and solvents
  5. Highly polished, smooth, easy to clean, low abrasion to the equipment
  6. High mechanical strength, good toughness, impact resistance, no broken beads
  7. Mainly used for lab planetary ball mill machine

Use of the Milling Media Balls

  1. Pregrinding the coarse, hard material with large balls
  2. Use of many small balls will increase the fine fraction if the running time is increased
  3. A higher mass (spec. weight) of the grinding balls will accelerate the grinding

Size of the Grinding Balls

Type of feed material

Ball diameter

Hard samples feed particle size <10 mm

30 mm or 40 mm

Medium piece size (<5 mm)

20 mm

Fine material (0.5 mm)

10 mm or 5 mm

Homogenisation of dry or liquid samples

10 mm

Homogenisation of viscous samples

20 mm

These are recommendations: the size of grinding jars and grinding balls should be determined experimentally if necessary.

Choice of Grinding Jars & Grinding Balls

In order to prevent excessive abrasion, the hardness of the grinding jars used and of the grinding balls must be higher than that of the material used. Normally, grinding jars and grinding balls of the same material should be chosen.

Technical Data

Model No.

BA0301

Quantity 1 kg - 3 mm Agate balls, Approx. - 26,700

Main Material

SiO2

Specific Gravity

2.65 kg/dm3

Bulk Weight

1.5 kg/L

Shape

sphere

Color

ivory white /gray

Ball Diameters

3mm~20mm

Hardness

7.2~7.5 Mohs;

Suitable For

soft to medium-hard sampels

Abrasion Resistance

good

Compatible Grinding Jar

agate jar



Element Analysis

General specifications

Main Materials

SiO2

Chemical composition

Element

wt %

SiO2

97.26

MgO/CaO/Mn2O3

2.74
