MSE PRO 2D Stepper Motorized Aluminum Alloy Rotation Stages - MSE Supplies LLC

MSE PRO 2D Stepper Motorized Aluminum Alloy Rotation Stages

SKU: OPMS0243

To better serve you, we would like to discuss your specific requirement.
Please Contact Us for a quote.

-Request a Quote

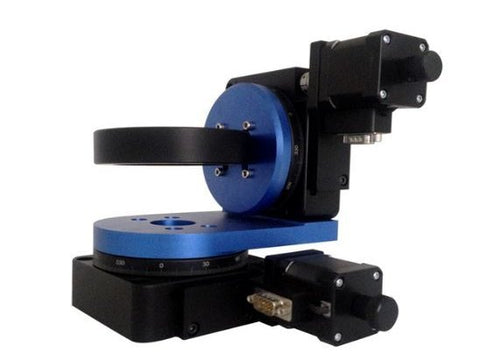

MSE PRO™ 2D Stepper Motorized Aluminum Alloy Rotation Stages

MSE PRO™ provides 2D Stepper Motorized Aluminum Alloy Rotation Stages. Motorized rotation stages are precision-engineered platforms designed for smooth and accurate rotational motion control. Powered by advanced motorized drive systems, these stages deliver exceptional angular positioning and repeatability, making them ideal for tasks requiring precise orientation adjustments. With robust construction and high load capacity, they ensure reliable performance in demanding applications such as optical experiments, laser processing, automation systems, and metrology. Compatible with various control interfaces, motorized rotation stages offer flexibility and ease of integration into complex setups, providing a perfect solution for achieving precise rotational motion in research and industrial environments.

Key Features

  • Standard stepper motors and RS232 interface.
  • Rotating shafts using multi-channel technology of precision processing, with high precision, large capacity and long life.
  • Using precision worm structure , exercise comfortable, forward and reverse rotation can be arbitrary and minimal backlash.
  • Can increase the limit function,  initial zero, change to servo motor, rotary encoder, accept the restructuring and customized products.

Angle Range  Around the Y, Z-axis 360 °
Transmission Ratio 180:1
Actuator Type Motorized rotary stage
Travel Guide Bearing
Stepper Motor (1.8°) SST42D3301
Base Material Aluminum Alloy
Surface Treatment Black-anodized
Load Capacity 8kg
Weight 4.4kg
Resolution 0.01°=36″（Non-MS Driver)
0.0005°=1.8″（20MS Driver)
Speed 10°/sec
Repeatability 0.01°=36″

MSE Supplies can offer a variety of optomechanical components, with different size, freedom of regulation and optical elements combination. Please contact us for customization or bulk orders.
