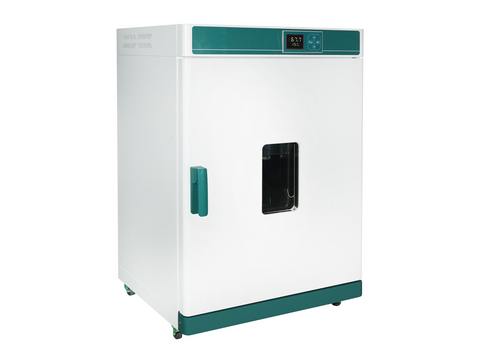

MSE PRO 230L Forced Air Oven LED Controller
SKU: MA4120
MSE PRO™ 230L Forced Air Oven LED Controller
The MSE PRO Forced Air Drying Oven is designed for efficient drying, baking, wax processing, and heat treatment in laboratory and industrial applications. With advanced air circulation technology and precise temperature control, it ensures uniform temperature distribution and enhanced safety.
- Efficient Air Circulation: Utilizes horizontal air circulation via double air ducts for high efficiency and uniform heating.
- Advanced PID Control: Equipped with a PID controller featuring over-temperature protection to ensure safe operation.
- User-Friendly Interface: Includes an LED digital display and fan switch for easy monitoring and control.
- Durable Construction: Features a high-temperature blast motor for reliable performance under extended use.
- Enhanced Safety: Comes with a newly designed anti-hot handle to prevent burns and improve user handling.
Brand: MSE PRO™
Manufacturer: MSE Supplies LLC
MSE Supplies offers a variety of Forced Air Drying Ovens. Please contact us for more information.
Specifications:
| SKU# | MA4120 | |
| Cycle Mode | Forced convection | |
| Function | Temp. Range | RT+10-300℃ |
| Temp. Resolution Ratio | 0.1℃ | |
| Temp. Motion | ±1℃ | |
| Temp. Uniformity | ±2.5% | |
| Structure | Inner Chamber | Mirror Stainless Steel |
| Outer Shell | Cold rolling steel electrostatic spraying exterior | |
| Insulation layer | High quality rock wool board(with CE) | |
| Heater | Stainless steel heater | |
| Power rating | 3.0kW | |
| Exhaust hole | Rear exhaust | |
| Controller | Temp. control mode | Two temperature section PID intelligent |
| Temp. setting mode | Touch button setting | |
| Temp. display mode | Measuring temperature: display on the four digital tubes upper row, setting temperature: display on the lower row | |
| Timer | 0-9999min(with timing wait function) | |
| Operation function | Fixed temperature operation, timing function, auto stop. | |
| Additional function | Sensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power-off parameter memory | |
| Sensor | PT100 | |
| Specification | Inner Chamber size(W*L*H) | 600*500*750 mm |
| Exterior size (W*L*H) | 735*835*1115 mm | |
| Volume | 230L | |
| Shelf number | 17 | |
| Load per rack | 15kg | |
| Shelf space | 40mm | |
| Power rating (50/60HZ) | AC220V/13.6A | |
| Net Weight | 94 kg | |
| Accessory | Shelf | 2 |
| Shelf frame | 4 | |
| Optional accessories | Spare Shelf | |
