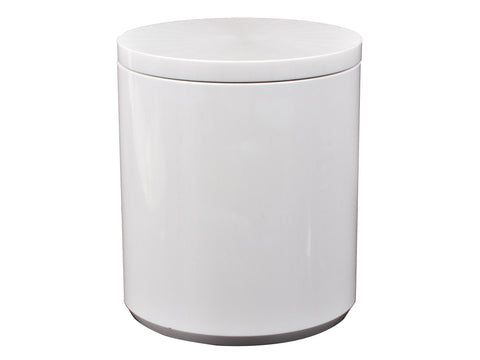

MSE PRO 1L (1,000 ml) Y-Stabilized Zirconia Milling Jar for Planetary Mills

Specifications for MSE PRO Zirconia Milling Jar

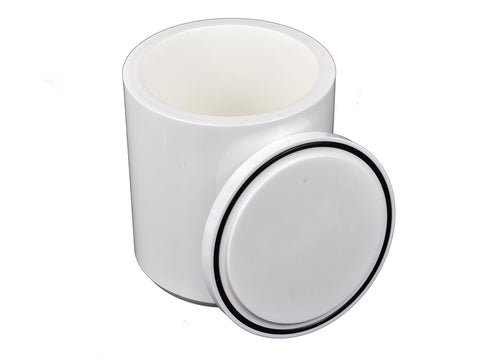

• Each jar set includes grinding jar, jar lid, rubber sealing gasket.
• Milling media sold separately

• Cost-effective, low wear and long lifetime.

• High specific gravity, high milling efficiency.

• Chemical resistant to acid and solvents.

• Smooth, easy to clean, minimum wearing to the equipment.

• Excellent toughness, high impact resistance, no broken beads.

• Mainly used for planetary ball mill machines.

Features of Zirconia Milling Jar

• Item No.: JA0202
• Material: Y stabilized Zirconium Oxide -ZrO₂
• Jar Volume: 1,000 ml (1L)
• Outer Diameter - 128.8 mm, Inner Diameter - 108.24 mm, Height 149.25 mm
• Max Loading Capacity: 2/3 capacity of the grinding jar
• Density: 6.06 g/cm³
• Color: ivory white
• Shape: cylindrical
• Hardness: >89 HRA
• Abrasion Resistance: very good
• Suitable for: fibrous, abrasive samples
• Max Working Temperature: 320°C
• Attachment: lid and rubber sealing gasket
• Grind Balls: zirconium oxide balls
• Grind Ball Sizes: 1 mm - 50mm beads are available

Did You Know?

A stainless steel sleeve can be added to convert to rotary mill (roller mill) application, please contact us for specific requirement.
