MSE PRO 1500 ℃ Single-Zone Mini Tube Furnace
SKU: MA0457-1

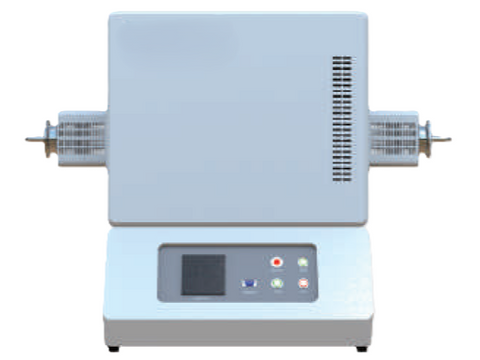

MSE PRO™ 1500 ℃ Single-Zone Mini Tube Furnace
The MSE PRO™ 1500 ℃ Single-Zone Mini Tube Furnace utilizes silicon carbide rods as heating elements, delivering a rated temperature of 1400 °C and a maximum temperature of 1500 °C. It features a digital temperature controller paired with an S-type thermocouple, supporting up to 30 programmable segments with a control accuracy of ±1 °C. Equipped with 316L stainless steel quick-release flanges using dual-ring sealing technology, this furnace is ideal for a wide range of experimental applications—including CVD processes, phosphor synthesis, sintering, and substrate coating—under vacuum or atmospheric conditions.
Brand: MSE PRO™
Manufacturer: MSE Supplies LLC
Technical Specification
| Model | MA0457 |
| Power Supplies | 220V/60Hz |
| Maximum temperature | 1500℃ |
| Rated temperature | 1400 ℃ |
| Operating pressure | Negative pressure - atmospheric pressure |
| Recommended heating rate | 0-10 ℃/min |
| Control precision | ±1 ℃ |
| Recommended heating rate | ≤1200℃, 0-10 ℃ 1200-1400℃, 0-5℃ >1400℃, 0-2 ℃ |
| Size of furnace tube | Φ30/50/60*800 mm |
| Size of furnace chamber | 150*190*130 |
| Heating zone length | 150 mm |
| Constant temperature zone length | 80 mm |
| Heating element | High-quality silicon carbide rod |
| Rated power | 4 kW |
| Outline dimension | 500*540*620 mm |
| Weight | 47 kg |
Due to the high powder, this furnace need to be connected to a require a miniature circuit breaker (MCB)
We offer Economy Compact Tube Furnaces with different sizes and Tmax . For more information, please contact us.
