MSE PRO 1-50% RH Desiccator Cabinet for Electronic and Semiconductors

  • $ 3,15900
  • Save $ 43600

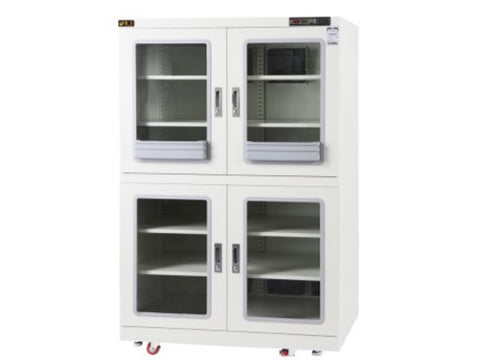

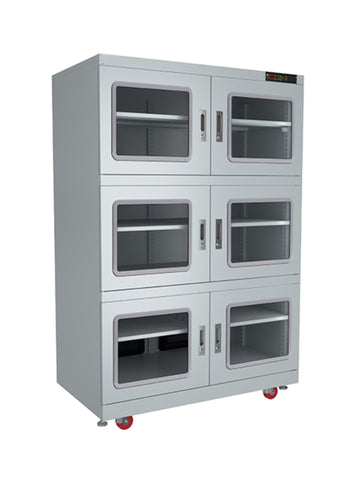

MSE PRO™ 1-50% RH Desiccator Cabinet for Electronics and Semiconductors

MSE Supplies offers a 1-50% RH Desiccator Cabinet, which is widely used in laboratories, precision instrument handling, semiconductor moldings, and optical lens production. It serves the critical function of providing a controlled low-humidity environment. Its primary purpose is to safeguard moisture-sensitive items from moisture-related damage or degradation.

In laboratories, it preserves hygroscopic samples and chemicals to ensure experiment accuracy. For precision instruments like spectrometers and microscopes, the drying box prevents moisture-induced damage to electronic components. In semiconductor molding, it stores semiconductor chips to maintain their performance and reliability. In optical lens production, it prevents fogging or damage caused by moisture. They play a pivotal role in maintaining the quality and functionality of moisture-sensitive materials and equipment.

Main Features:

  • Made of 1mm double-layer powder-coated steel plate, resistant to scratching, ensuring a high-strength cabinet body.
  • Modular Design: This dry cabinet is designed with modularity in mind. The primary modules include a display controller, power box, dehumidifier, shelf, and caster wheels. All modules can be easily replaced.
  • Green Design: The dry cabinet's performance can be upgraded simply by changing its modules, resulting in no waste materials that could pollute the environment. Dryzone dry cabinets can remain in use as long as the cabinet structure remains in good condition, potentially lasting 10 to 20 years.
  • Flexible Design: Users have the option to select more dehumidifiers initially or add these modules in the future. The units are highly flexible, allowing users to choose and install modules at any time.
  • The LED system allows for setting upper temperature and humidity limits, featuring functions for over-temperature and over-humidity alarms, as well as delayed alarms, and ISO calibration reminder functionality.

Technical Specifications:

SKU MA2132 MA2133
Temperature and Humidity Accuracy ±3.0% RH, ±1.0℃
Humidity Range Relative Humidity: 1~50%RH (Adjustable)
Control Method Adjustable Setpoint
Outer Dimensions (WxDxH) 905x452x1045 mm 1200x672x1820 mm
Inner Dimensions (WxDxH) 903x425x870 mm 1198x644x1618 mm
Capacity 328 L 1250 L
Number of Shelves 3 pieces 5 pieces
Power AC110V, 60Hz AC110V, 60Hz
