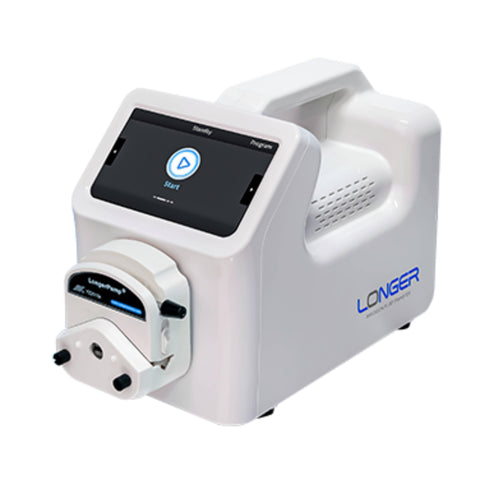

LONGER L100-1FS Intelligent Peristaltic Pump
SKU: L100-1FS_YZ1515X-A/C
LONGER L100-1FS Intelligent Peristaltic Pump
Intelligent peristaltic pump L100-1FS is used in laboratory and smaller batch production. The pump adopts 7 inch touch screen with intuitive graphic interface. Multiple function modules and intelligent algorithms are designed for a wide variety of applications, to run complex liquid transferring process. Automatic identification of pump head and tubing, simplify the operation process and provide reliable guarantee for high-precision fluid transferring. Acceptable pump heads are YZ1515x, YZ2515x, YZII15, YZII25, BZ series, DG series, DG15 series, DMD15-13, FG15-13 and FG25-13. The pump delivers flow rate from 0.15ul/min to 500ml/min. The pump could be controlled through touch screen, footswitch, analog signal and RS485 communication and combined with a variety of interfaces (USB, RJ11, DB9 etc.) for easy system connection. CE certification.
Product Features
- Intelligent peristaltic pump L100-1FS is used in laboratory and smaller batch production.

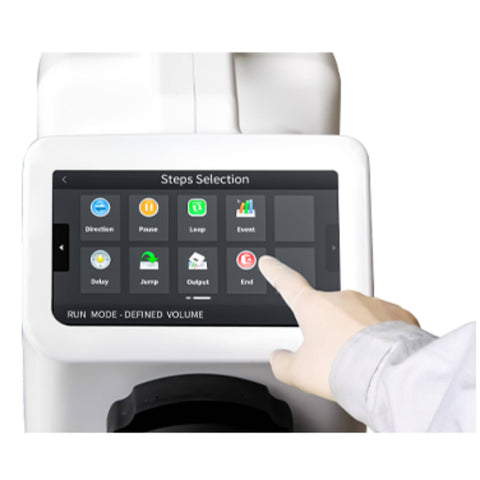

- The pump adopts 7 inch touch screen with intuitive graphic interface. Multiple function modules and intelligent algorithms are designed for a wide variety of applications, to run complex liquid transferring process.
- Automatic identification of pump head and tubing, simplify the operation process and provide reliable guarantee for high-precision fluid transferring.
- Acceptable pump heads are YZ1515x, YZ2515x, YZII15, YZII25, BZ series, DG series, DG15 series, DMD15-13, FG15-13 and FG25-13.
- The pump delivers flow rate from 0.15ul/min to 500ml/min.

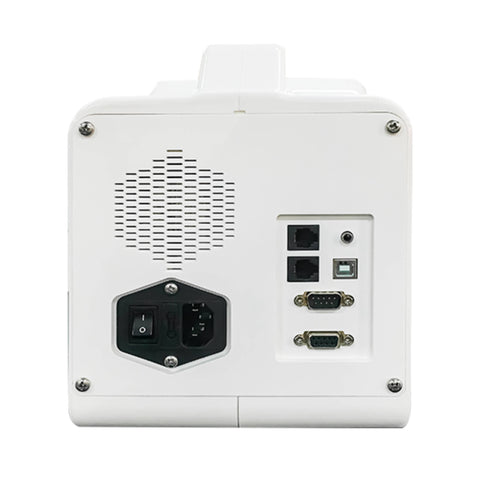

- The pump could be controlled through touch screen, footswitch, analog signal and RS485 communication and combined with a variety of interfaces (USB, RJ11, DB9 etc.) for easy system connection.
- CE certification.
Product Parameters
|
Parameters |
L100-1FS |
|
Max. flow rate (Single Channel) |
500mL/min |
|
Pump speed |
0.1rpm -100rpm，CW/CCW |
|
Speed resolution |
0.1rpm |
|
Display |
7 inch color LCD for time, flow rate, volume and other parameters |
|
Work mode |
Continuous mode, Time mode, Volume mode, Multi-dispensing mode, Programming mode |
|
Control mode |
Touch screen control, Footswitch control, External control, Communication control |
|
Calibration function |
Flow rate calibration, Volume calibration |
|
External control |
Control function: start/stop, running direction, speed Pump status output: run/stop, running direction |
|
Communication control |
Interface: RJ11(RS485), USB; Protocol: Modbus RTU |
|
Dimensions(L x W x H) |
294×180×235(mm) |
|
Power supply |
AC220V±20%, 50Hz/60Hz; AC110V±20%, 50Hz/60Hz |
|
Operating temperature |
0℃-40℃ |
|
Relative humidity |
＜80% |
|
IP rating |
IP31 |
|
Weight |
0.5kg |
Technical Specifications
|
L100-1FS |
|
|
Speed |
≤100rpm,CW/CCW |
|
Speed resolution |
0.1rpm |
|
Flow rate |
0.15uL/min-500mL/min |
|
Dispensing volume |
0.1mL-9999L(accuracy of ±2% with calibration) |
|
Calibration |
Improve the flow rate and dispensing volume accuracy. |
|
Display |
7Inch 1024×600 color LCD |
|
Language |
Chinese or English, set as needed |
|
Control mode |
Touch screen control, footswitch control, external signal control and communication control |
|
Work mode |
Programming |
|
Programming function |
Running control module: constant, ramp up/down, stepped up/down, sine, constant dispensing, incremental/decremental dispensing. Logic contol module: direction, delay, event trigger, status output, pause, jump, loop, stop. Configure multi-step program with multiple modules for complex application |
|
External control |
Start/stop control, direction control: logic level signal or switch signal(dry contact) Speed control:0-5V,0-10V,4-20mA or0-10kHz with uniform interface, max speed can be set. |
|
Communication control |
USB or RS485(RJ11) interface, Modbus protocol, multiple baud rate |
|
Status output |
Output logic level signals to indicate pump running status, direction status, and other custom status. |
|
Parameter method function |
7 parameter methods can be stored and easily recalled, 1 external control method is preset |
|
Scheduled start |
The delay start time can be set, and the pump will start running at desired time. |
|
Back suction |
Antidrip through setting back suction angle and delay time for high dispensing accuracy |
|
Dispensing volume setting range |
0.001uL-9999L |
|
Dispensing time and Interval time |
0.5s-9000s |
|
Dispensing cycle |
1-999999(0 for unlimited) |
|
Time in fluid transferring modules |
1s-9000s(0s for continuous transfer without time limit) |
|
Delay time setting range |
0.5s-9000s |
|
Prime |
Fast filling and emptying at full speed |
|
EMC |
Comply with EN 61326-1:2013 |
|
Dimension(LXWXH) |
294x180X235(mm) |
|
Power Supply |
L100-1F-A:AC220V±20%,50Hz/60Hz |
|
Power Consumption |
35W |
|
Condition |
temperature: 0℃-40℃ relative humidity: <80% |
|
IP rating |
IP31 |
|
Weight |
5.0kg |
Suitable Pump Heads and Tubing
|
Pump Head |
Tubing |
Max Flow Rate Reference(mL/min) |
Weight(kg) |
|
YZ1515x,YZII15 |
13#,14#,19#,16#,25#,17#,18# |
380 |
5.4 |
|
YZ2515x |
15#,24# |
266 |
5.4 |
|
YZII25 |
15#,24#,35#,36# |
500 |
5.4 |
|
FG15-13 |
13#,14#,19#,16#,25#,17#,18# |
430 |
5.3 |
|
FG25-13 |
15#,24# |
270 |
5.3 |
|
DMD15-13-B |
2x13#,2x14#,2x19#,2x16#,2x25# |
375 |
5.4 |
|
BZ15-13-A |
14# |
22 |
5.3 |
|
BZ15-13-B |
16# |
80 |
5.3 |
|
BZ15-13-C |
25# |
150 |
5.3 |
|
BZ15-13-D |
17# |
270 |
5.3 |
|
BZ25-13-B |
24# |
250 |
5.3 |
|
DG15-24 |
16#,25#,17# |
300(Single Channel) |
5.8 |
|
DG15-28 |
13#,14# ID≤3.17mm, Wall thickness: 1mm |
75(Single Channel, speed<=100rpm) |
5.7 |
|
DG(1,2,4,6,8)6rollers |
ID≤3.17mm,Wall thickness: |
48(Single Channel, speed<=100rpm) |
5.2-5.6 |
|
DG-(1,2,4)10rollers |
ID≤3.17mm,Wall thickness: |
32(Single Channel, speed<=100rpm) |
5.2-5.4 |
