Ampcera LISICON LATP Solid State Electrolyte Membrane, 300um thick, 12mm diameter,  MSE Supplies

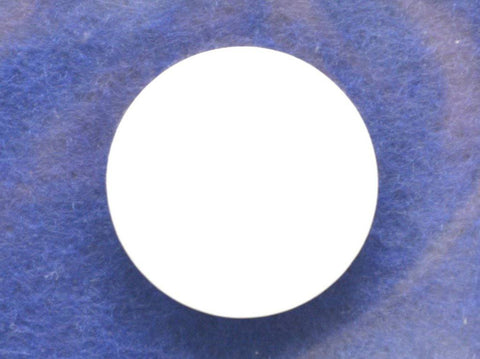

Ampcera LISICON LATP Solid State Electrolyte Membrane, 300um thick, 12mm diameter

  • $ 25000

Qty (Each) Price (Each)
1 - 9 $ 250.00
10 - 10+ $ 200.00

Ampcera LISICON LATP Solid State Electrolyte Membrane, 300um thick, 12mm diameter, lithium aluminum titanium phosphate (LATP)

  • SKU# ME0201
  • Composition: LATP, Li1.3Al0.3Ti1.7(PO4)3
  • Size (Diameter): 12 mm +/- 0.3 mm
  • Thickness: 300 um +/- 10 um
  • Lithium Ionic Conductivity: 2.75 x 10-4 S/cm at room temperature (25C)
  • Relative Density: 95%
  • Theoretical Density: 2.92 g/cm3
  • Membrane Product Density: 2.77 g/cm3
  • Flexural Strength: ~140 MPa
  • Primary Crystal Structure: NASICON type LATP crystals
LAGP solid state electrolyte powders and membranes are also available from MSE Supplies. Click here.
    • Applications: The unique properties of Ampcera™ LISICON lithium aluminum titanium phosphate (LATP) membrane solid state electrolyte materials make them ideal choices for all solid state lithium batteries, advanced Lithium-Sulfur, Lithium-Air, Lithium-Water batteries, etc. Ampcera™ LISICON (Lithium-ion Superionic Conductor) LATP membrane materials are used as solid state electrolytes or separators in advanced lithium batteries and other electrochemical devices.
    • * All solid state electrolyte materials sold by MSE Supplies are under the trademark of Ampcera.
