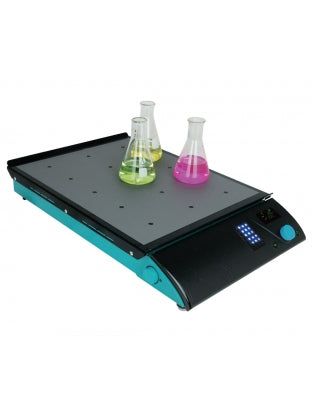

Lab Companion Hotplate & Magnetic Stirrers (Multi type)
Lab Companion Hotplate & Magnetic Stirrers (Multi type)
Buy Lab Companion products from MSE Supplies at the best value.
MSE Supplies offers Lab Companion Hotplate & Magnetic Stirrers (Multi type) from Jeio Tech. They allows simultaneous independent stirring available at max. 15 points with stable heating.
Country of Origin: Made in South Korea
Manufacturer: Jeio Tech
Main Features:
- Instant halt of the stirring operation.
- Easy-to-read VFD and intuitive control panel.
- Bright and vivid LED stirring position indicating lamps and heating operation lamp for stable operations.
- High heat transfer aluminum top-plate.
- Unit is safely designed to protect internal components from accidental spills.
- Non-slip silicon plate mat is attached on the top plate to prevent unintended slips
- Built in thermal shut off and current limit protection.
Accessories:
-
Octahedral magnetic stirring bar
- Cylindrical magnetic stirring bar
- Oval magnetic stirring bar
- Plastic retriever (PP) Plastic retriever (PTFE)
- Plastic retriever (PTFE)
For accessories, please contact us so we can help you choose appropriate products for your needs.
Technical Specifications:
|
SKU# |
AAHK34013U |
AAHK34023U |
|
|
Electrical requirements (120V, 60Hz) |
8.0 A |
11.2 A |
|
|
SKU# |
AAHK34015K |
AAHK34025K |
|
|
Electrical requirements (230V, 50/60Hz) |
4.1 A |
5.8 A |
|
|
Body |
Material |
Powder coated steel |
|
|
Dimension (WxDxH) (inch) |
15.55x17.72x4.09 |
15.55x24.17x4.09 |
|
|
Top plate |
Material |
Aluminum |
|
|
Dimension (WxD) (inch) |
15.16x12.91 |
15.16x19.41 |
|
|
Heating |
Temperature range (℃ / ℉) |
Max. 120 / 248 |
|
|
Control |
Scale |
||
|
Heating power (W) |
600 |
1000 |
|
|
Stirring |
Speed range (rpm) |
30 to 2,000 |
|
|
Control |
Feedback control with PID |
||
|
Stirring position |
9 |
15 |
|
|
Stirring point distance (WxD, inch) |
4.61x3.54 |
||
|
Timer |
1min. to 99 hr. 59 min. |
||
|
Motor |
BLDC motor |
||
|
Motor rating input / output (W)per each point |
2.9/1.6 |
||
|
Magnetic bar, Max. (inch) |
0.31x1.18 |
||
|
Safety |
Over temp. |
Top plate |
|
|
Over current |
Current limit protection |
||
|
Load, Max (Ibs) |
66.14 |
||
|
Net weight (Ibs) |
22.05 |
33.06 |
|
About Jeio Tech: Jeio Tech products are put through rigorous quality control from the most basic metal processing to final inspections. Based on over 28 years of technical experience in instrument manufacturing, their highly integrated team of engineers strive to deliver outstanding quality to their clients. Their professional know-how will always keep their reputation as the primary partner for the customers research needs.
MSE Supplies is an authorized distributor for Jeio Tech.
