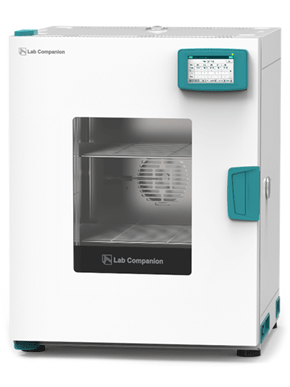

Lab Companion Forced Convection Ovens (Programmable, OF4-P)
Lab Companion Forced Convection Ovens (Programmable, OF4-P)
Buy Lab Companion products from MSE Supplies at the best value.
MSE Supplies offers Lab Companion Forced Convection Ovens (Programmable, OF4-P) from Jeio Tech.
Country of Origin: Made in South Korea
Manufacturer: Jeio Tech
Main Features:
- User interface that provides a quick view of temperature changes (heating, stable, and cooling) and fan speed also.
- Set various test condition using 10 programs and 10 steps, which can be repeated up to 99 times.
- Opti-flow™, a function to flexibly adjust the fan speed according to the specimen type and test conditions.
- Hands-free™ door system to allow users to easily open the door while carrying samples with both hands.
- Monitor and control via mobile app anytime, anywhere with LC Connected. (mobile monitoring system) (option)
- Test data is automatically saved and easily downloaded via USB; easy to edit and use. (in CSV format)
- Wide temperature range of up to 250℃.
- Ramping rates (℃/min) flexibly adjustable for each test performed.
Accessories:
- Wire shelf
- Perforated shelf
- Double-stacked bracket
- BMS Port
- LC GreenBox
- Communication Port
For accessories, please contact us so we can help you choose appropriate products for your needs.
Technical Specifications:
|
SKU# |
Solid door (without window) |
AAH12916U |
AAH12926U |
AAH12936U |
AAH12946U |
|
Window door |
AAH12956U |
AAH12966U |
AAH12976U |
AAH12986U |
|
|
Electrical requirements (120V, 60Hz, A) |
12.3 |
||||
|
Dimensions |
Interior (W x D x H, inch) |
11.80 x 8.27 x 15.75 |
14.97 x 13.0 0x 18.90 |
19.09 x 13.78 x 25.79 |
21.65 x 14.80 x 27.95 |
|
Exterior (W x D x H, inch) |
18.82 X 20.75 X 23.78 |
21.97 X 25.51 X 26.93 |
26.1 X 26.65 X 33.82 |
28.66 X 27.72 X 35.98 |
|
|
Net weight (lbs) |
72.8 |
116.8 |
138.9 |
160.9 |
|
|
Chamber volume (L) |
26 |
61 |
112 |
147 |
|
|
Temperature 1) |
Range (℃/℉) |
Amb. + 10~250 / Amb. + 18 ~ 482 |
|||
|
Fluctuation at 100℃ (±℃/±℉) |
0.3/0.54 |
0.3/0.54 |
0.3/0.54 |
0.3/0.54 |
|
|
Variation at 100℃ (±℃/±℉) |
1.4/2.52 |
1.9/3.42 |
1.7/3.06 |
1.5/2.70 |
|
|
Heating time to 100℃ (min) |
8 |
10 |
14 |
15 |
|
|
Recovery time at 100℃ (min) |
4 |
4 |
4 |
4 |
|
|
Control Panel |
5inch TFT Color LCD |
||||
|
Communication interface |
USB, RS-232, BMS |
||||
|
Function |
Program setting |
10 program, 10 step, start temp. |
|||
|
Scehdular |
Set day, time, and program No |
||||
|
Recently event record |
36ea |
||||
|
Fan speed adjustable |
Three-step wind speed settings |
||||
|
Recommended temperature |
Three frequently used temperature settings suggested |
||||
|
Graph |
Available checking the stored and real-time data as graphs |
||||
|
Data storage |
Save the test data in CSV format |
||||
|
Temp. ramping rate (℃/min. / ℉/min.) |
0~13/0~23.4 |
0~9/0~16.2 |
0~6/0~10.8 |
0~5/0~9 |
|
|
Shelves |
Quantity of shelves (Standard/max.) |
2/4 |
2/5 |
2/8 |
2/9 |
|
Max. Load per shelf (lbs) |
66.1 |
||||
|
Number of Air change per hour at 100 ℃ 2) |
123 |
22 |
18 |
11 |
|
About Jeio Tech: Jeio Tech products are put through rigorous quality control from the most basic metal processing to final inspections. Based on over 28 years of technical experience in instrument manufacturing, their highly integrated team of engineers strive to deliver outstanding quality to their clients. Their professional know-how will always keep their reputation as the primary partner for the customers research needs.
MSE Supplies is an authorized distributor for Jeio Tech.
