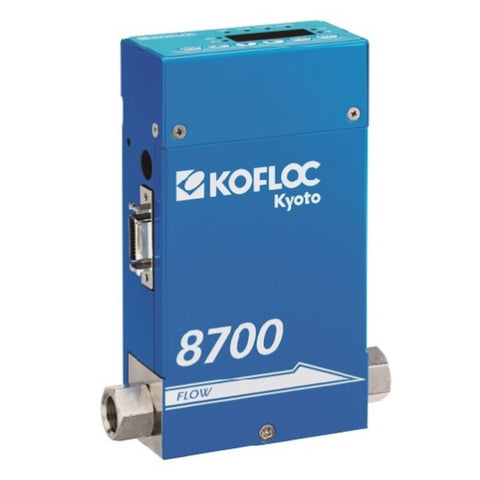

Kofloc Digital Mass Flow Meter with Display MODEL 8700 SERIES
SKU: 8700MM-0-Rc1/4-Air-20SLM
Kofloc Digital Mass Flow Meter with Display MODEL 8700 SERIES
Buy KOFLOC Products from MSE Supplies at the best value.
-
Applicable gas:
- N₂,Air,H₂,He,Ar,O₂,CO₂ etc.
-
Flow range:
- 10SCCM～100SLM
-
Accuracy:
- ±1～1.5%F.S.
-
Capable of wide flow range
(from F.S. 10SCCM to F.S. 100SLM in N2 equivalent)
-
Various functions are available with built-in display
Instantaneous / integrated flow rate display alarm setting
-
RS485 communication function
![]()
Specifications:
|
MODEL |
8700MC / MM |
8750MC / MM |
|
Sensor type |
Thermal sensor |
|
|
Valve type |
Proportional solenoid valve (normally closed) |
|
|
Applicable gas |
N₂, Air, H₂, He, Ar, O₂, CO₂, etc. |
|
|
Full-scale flow rate (N₂ equivalent) |
10SCCM to 20SLM |
30 to 100SLM |
|
Control range |
2 to 100%F.S. |
5 to 100%F.S. |
|
Response |
Within 2sec. (within ±2% F.S.) |
Within 3sec. (within ±2% F.S.) |
|
Accuracy |
±1%F.S. (25°C) |
±1.5%F.S. (25°C) |
|
Temperature coefficient |
±0.1% F.S./°C (15 to 35°C) |
±0.2%F.S./°C (15 to 35°C) |
|
Repeatability |
±0.5%F.S. |
|
|
Operating differential pressure |
F.S. ≤ 5SLM 50 to 300kPa |
F.S. ≤ 50SLM 150 to 300kPa |
|
Max. inlet pressure |
500kPa(G) |
|
|
Proof pressure |
1MPa(G) |
|
|
He Leak rate |
≤ 1 x 10⁻¹⁰Pa⋅m³/s |
|
|
Allowable ambient temperature |
5 to 45°C |
|
|
Allowable storage temperature |
-10 to 60°C |
|
|
Allowable ambient humidity |
10%RH to 90% RH (no dew condensation) |
|
|
Materials of parts in contact with gases |
SUS316, SUS316L, Magnetic stainless steel (MFC only), FKM (option: NBR or CR) |
|
|
Electrical connection |
D-sub half pitch 20 pins, Hirose DX10M-20S |
|
|
Flow rate setting signal |
0 to 5VDC (Input impedance: 100kΩ or more) / 4 to 20mA (Input impedance: Approx. 250Ω) |
|
|
Flow rate output signal |
0 to 5VDC (Load resistance: 250kΩ or more) / 4 to 20mA (Load resistance: 300Ω or less) |
|
|
Digital communication |
RS485 |
|
|
Display |
4-digit 7-segment LED |
|
|
Power supply |
24VDC (±10%), 300mA or less |
|
