Kern DAB Series Moisture Analyzer for Recurring Rapid Tests

SKU: DAB100-3

  • $ 1,54895
  • Save $ 18600

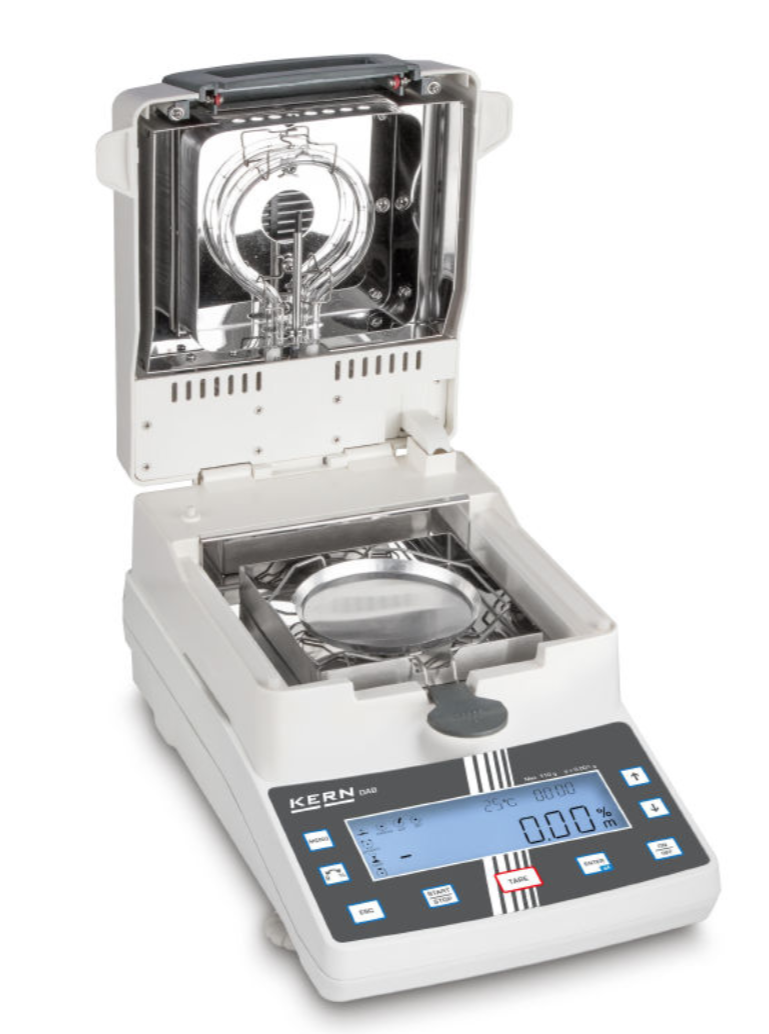

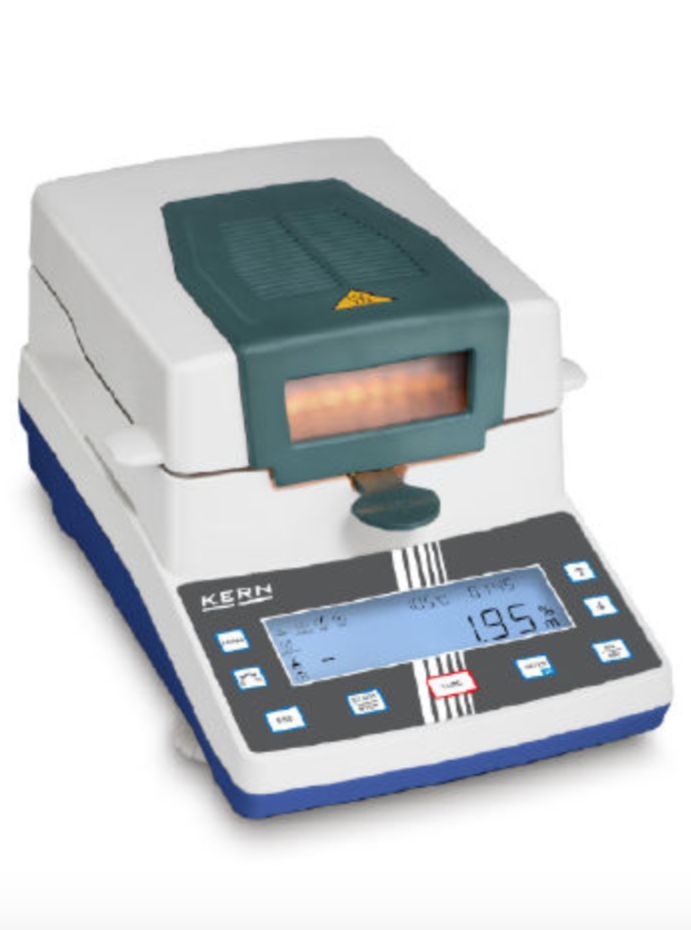

Kern DAB Series Moisture Analyzer for Recurring Rapid Tests

Buy Kern products from MSE Supplies at the best value.

MSE Supplies offers DAB Series Moisture Analyzer from KERN & SOHN. DAB series are particularly easy. DAB 200-2 is the new version with lower resolution, whereby the switch-off criteria is reached more quickly and saves time. Both variants are designed for recurring rapid tests. They are ideal for various industries, including food, chemical, environmental, etc.

Country of Origin: Made in Germany

Manufacturer:  KERN & SOHN GmbH

Main Features:

  • Observation window above the sample, useful during initial setting
  • Internal memory for automatic sequence of 15 complete drying processes and 5 drying processes carried out
  • Halogen quartz glass heater 400 W
  • Ideally suited for rapid testing and random sampling
  • The last value measured remains on the display until it is replaced by a new measurement


  • Sample plates (Aluminum), Ø 90 mm, unit of 80 pieces
  • Round fiberglass filter for samples that splash or become encrusted, unit of 100 pieces
  • Temperature calibration set consisting of measuring sensor and display device
  • RS-232/Ethernet adapter to connect force-measuring instruments to an IP-based Ethernet network
  • RS-232/Bluetooth adapter: Adapter for the wireless connection of balances, force measuring devices etc. to an RS-232 interface to Bluetooth devices, such as Bluetooth printers (e. g. KERN YKC-01), tablets, laptops, Smartphones etc.
  • Thermal receipt rolls for Printer KERN YKB-01N (10 pieces)
  • Thermal printer for KERN-Balances with Data interface RS-232
  • Temperature calibration set
  • Infra-red glass emitter, temperature range 40 °C - 160 °C, Factory Option

For accessories, please contact us so we can help you choose appropriate products for your needs.

    Technical Specifications:

    SKU# DAB100-3 DAB200-2
    Dimension (WxDxH) 240 mm x 365 mm x 180 mm
    Weight Plate Material Aluminum dish
    Weighing Surface 92 mm
    Adjustment Options External calibration
    Eccentric Loading at 1/3 (Max) 5 mg 50 mg
    Linearity 3 mg 30 mg
    Minimum Weight (USP) 2 g 20 g
    Maximum Weight 110 g 200 g
    Moisture Readability 0.01% 0.05%
    Readability (d) 1 mg 10 mg
    Repeatability 1 mg 10 mg
    Stabilization Time 3 sec
    Tare Range 110 g 200 g
    Warm Up Time 2 hr 30 min
    Weighing System Strain gauge
    Weighing Units g, % Feuchte, % Trockenmasse
    Input Voltage 230 VAC ; 50 Hz (110V available with transformer)
    Net Weight 4.82 kg

    About KERN & SOHN GmbH: Founded in 1844 and manufactured the most accurate balances of its time. Kern's business became the core cell of the internationally famous, southern German precision balance manufacturing. With over 175 years of experience and the devotion to quality have enabled them to become specialists in the weighing field that stands for precision and reliability. Discover the KERN route to success: fast – competent – reliable – versatile!

    MSE Supplies is an authorized distributor for KERN & SOHN GmbH.
