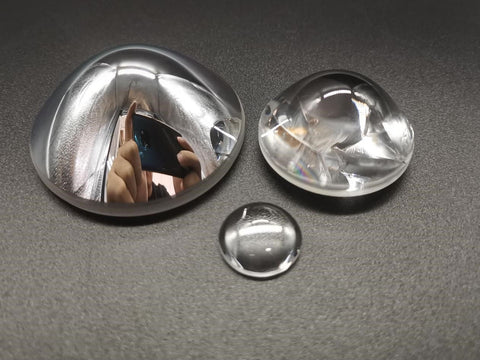

Imaging Grade Aspherized Lenses

To better serve you, we would like to discuss your specific requirement, Please Contact Us for a quote.

MSE supplies offers customized Illumination Grade Aspherized Lenses with different materials, dimension, surface qualify, etc.

Aspherized Lenses are used to reduce or eliminate spherical aberration. They can also be used to reduce other optical aberrations such as astigmatism. It is cheaper and lighter comparing to composed lenses.

MSE Supplies can offer a variant of optical elements, with different materials, size, surface quality and coating. Please contact us for customization or bulk orders.

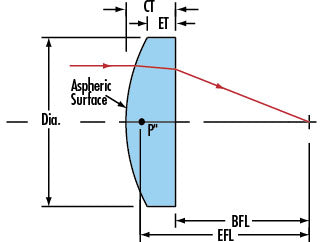

Technical Data:

Parameters Value
Material
  • Optical Glass
  • Fused Silica
Diameter (mm) 10-300
Diameter Tolerance (mm) +0/-0.01~+0/-0.1
Thickness Tolerance (mm) ±0.01~±0.1
Focal Length Tolerance (%) ±1
Irregularity (P-V) @ 632.8nm λ/10~2λ
Surface Quality 20/10~60/40
Aspherical Equation Customize
Centration <30”~3'
Clear Aperture (%) >90
Bevel Protective bevel as needed
Coating Uncoated, AR, BBAR
