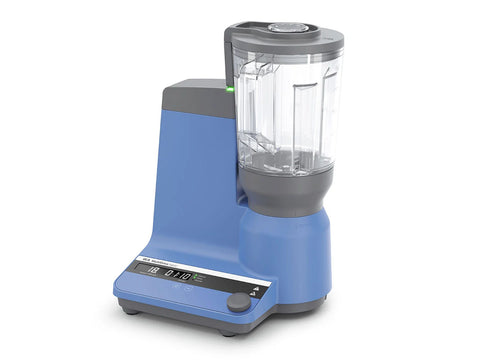

IKA MultiDrive Basic Mills (20000 rpm)
Buy IKA products from MSE Supplies at the best value.
MSE Supplies is an authorized distributor of IKA.
Item number: 0025002639
Regardless of whether samples are hard, soft or fibrous – the IKA MultiDrive crusher can perform a wide range of crushing tasks involving coarse and fine crushing, thanks to the variety of vessels available (vessels not included in delivery). With the MultiDrive basic it is possible to mix or grind. There is a USB interface available for easy actuation and documentation respectively. In combination with the milling chamber MI 250 MultiDrive basic replaces your M 20 mill.
Excellent crushing performance is guaranteed by a combination of variable rotational speeds, ranging from 3000 rpm to 20 000 rpm, and a 1000 Watt output.
The option of interval programming is simple to activate at the press of a button. Interval operation is an asset during the coarse crushing of hard samples or for extra thorough blending.
A cooling system is integrated in the milling cup, which allows indirect heat dissipation. Thus, coolant and sample remain separate.

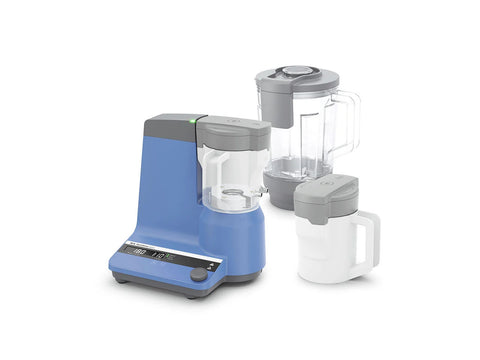

Variety of vessels (accessory)
MultiDrive provides the right vessel for each grinding task.
Vessels don't belong to the scope of delivery.
Scope of delivery
- IKA MultiDrive basic
- Socket wrench
- Disassembly tool 1
- Disassembly tool 2
- Cleaning brush
- USB Cable - USB A to Micro-B, 2 m
Founded in 1910 as a supplier for pharmacies and hospitals, the company left bombed-out Cologne for Staufen im Breisgau in 1942. There it quickly became the world's leading company for laboratory technology as well as dispersing, stirring and kneading machines.
Technical Data of IKA MultiDrive Basic Mills (20000 rpm)
|Motor rating input||1000 W|
|Motor rating output||800 W|
|Speed range||3000 - 20000 rpm|
|Speed deviation||±5 %|
|Power-ON time||5 min|
|Power-OFF time||10 min|
|Motor principle||Brushless DC|
|Display||7 segment LED|
|Dimensions (W x H x D)||300 x 350 x 250 mm|
|Permissible ambient temperature||5 - 40 °C|
|Permissible relative humidity||80 %|
|Protection class according to DIN EN 60529||IP 31|
|Voltage||100 - 120 V|
|Power input||1000 W|
