IKA EUROSTAR 60 Control Overhead Stirrers (40 l, 2000 rpm) - MSE Supplies LLC

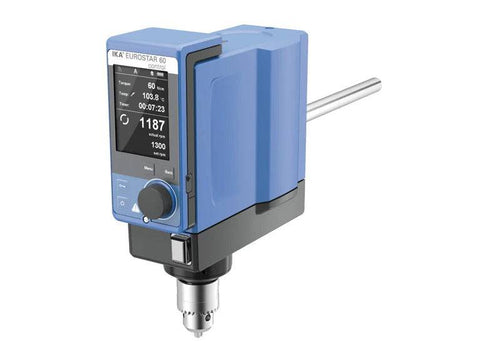

IKA EUROSTAR 60 Control Overhead Stirrers (40 L, 2000 rpm)

  • $ 2,52400
  • Save $ 5200


Buy IKA products from MSE Supplies at the best value.

MSE Supplies is an authorized distributor of IKA.

Product Details

Item number: 0004440001

Universal laboratory stirrer designed with a removable wireless controller and a digital TFT display. It automatically adjusts the speed through microprocessor controlled technology within the speed range of 0/30 - 2000 rpm. The stirrer comes equipped with a RS 232 and a USB interface to control and document all parameters. An integrated torque trend display is provided for the measurement of viscosity changes. Safety circuits installed ensures automatic cut-off in an anti-stall or overload conditions. Continuous comparison of shaft speed to desired speed is maintained and variations are adjusted automatically. This guarantees a constant speed even with changes in viscosities of the sample.
  • Multilingual TFT display
  • Programmable functions
  • Integrated temperature measurement
  • Interval operation
  • Timer function
  • Adjustable safety circuit
  • Locked function
  • Infinitely adjustable speed
  • Push-through agitator shafts
  • Overload protection
  • Short-term overload operation
  • Slim casing
  • Quiet operation
  • Error code display
  • H 67.60 temperature sensor and WH 11 WiCo holder included in delivery
Scope of delivery
  • EUROSTAR 60 control
  • H 67.60 Temperature sensor, stainless steel
  • WH11
  • OS 1.0 WiCo power supply unit
  • USB Cable - USB A to Micro-B, 2 m
  • USB cable micro A – micro B 2.0
  • Screw driver
  • Protective cover for WiCo contact
  • Chuck key

                                                      About IKA

                                                      Founded in 1910 as a supplier for pharmacies and hospitals, the company left bombed-out Cologne for Staufen im Breisgau in 1942. There it quickly became the world's leading company for laboratory technology as well as dispersing, stirring and kneading machines.

                                                      Technical Data of IKA EUROSTAR 60 Control Overhead Stirrers (40 L, 2000 rpm)

                                                      Stirring quantity max. per stirring position (H2O) 40 L
                                                      Motor rating input 168 W
                                                      Motor rating output 131 W
                                                      Motor principle Brushless DC
                                                      Speed display TFT
                                                      Speed range 0/30 - 2000 rpm
                                                      Intermittent operation yes
                                                      Viscosity max. 50000 mPas
                                                      Output max. at stirring shaft 126 W
                                                      Permissible ON time 100 %
                                                      Torque max. at stirring shaft 60 Ncm
                                                      Speed adjustment stepless
                                                      Setting accuracy speed ±1 rpm
                                                      Deviation of speed measurement n > 300rpm ±1 %
                                                      Deviation of speed measurement n < 300rpm ±3 rpm
                                                      Stirring element fastening chuck
                                                      Connection for ext. temperature sensor PT1000
                                                      Temperature display yes
                                                      Chuck range diameter 0.5 - 10 mm
                                                      Hollow shaft, inner diameter 11 mm
                                                      Hollow shaft (push-through - when stopped) yes
                                                      Fastening on stand extension arm
                                                      Extension arm diameter 16 mm
                                                      Extension arm length 220 mm
                                                      Torque display yes
                                                      Speed control electronic
                                                      Nominal torque 0.6 Nm
                                                      Torque measurement trend
                                                      Deviation of torque measurement I ±6 Ncm
                                                      Timer yes
                                                      Timer display TFT
                                                      Time setting range 1 - 6000 min
                                                      Temperature measuring range -10 - +350 °C
                                                      Temperature measurement resolution 0.1 K
                                                      Accuracy of temperature measurement ±0.5 + tolerance PT1000 (DIN EN 60751 Class A) K
                                                      Limit deviation temperature sensor ≤ ± (0.15 + 0.002xITI) K
                                                      Housing material alu-cast coating / thermoplastic polymer
                                                      Communication distance (depend onbuilding) max. 150 m
                                                      Dimensions (W x H x D) 86 x 267 x 230 mm
                                                      Weight 4.7 kg
                                                      Permissible ambient temperature 5 - 40 °C
                                                      Permissible relative humidity 80 %
                                                      Protection class according to DIN EN 60529 IP 40
                                                      RS 232 interface yes
                                                      USB interface yes
                                                      Voltage 115 V
                                                      Frequency 50/60 Hz
                                                      Power input 176 W
