Gas Diffusion Electrode X-Ray diffraction electrochemical flow cell setup

$ 3,524⁹⁵

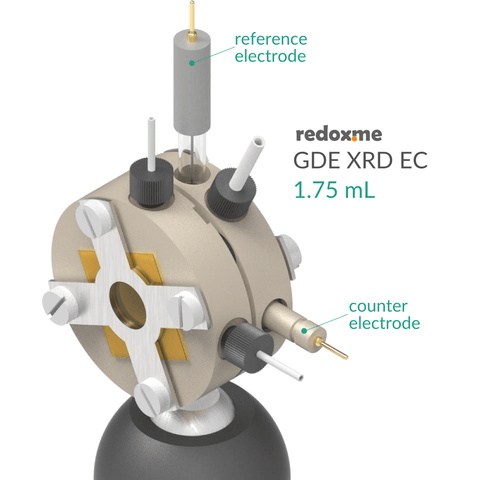

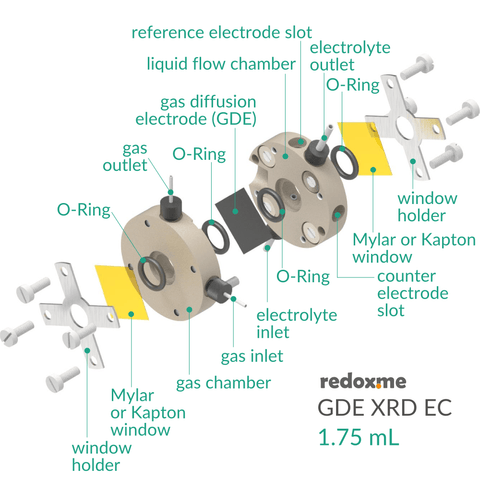

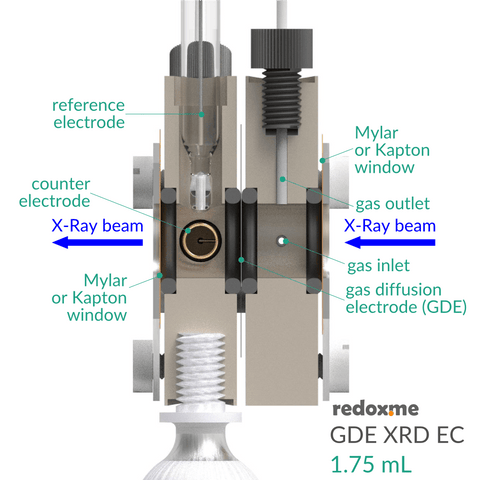

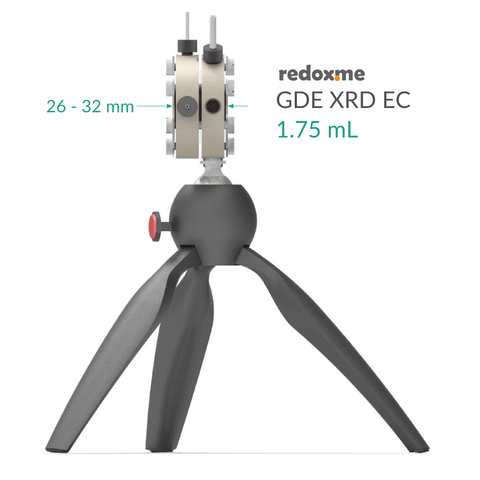

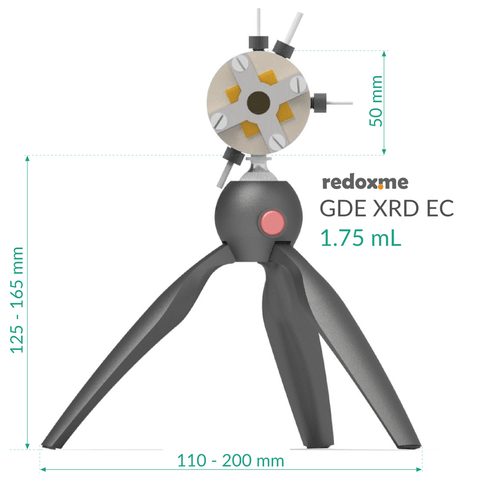

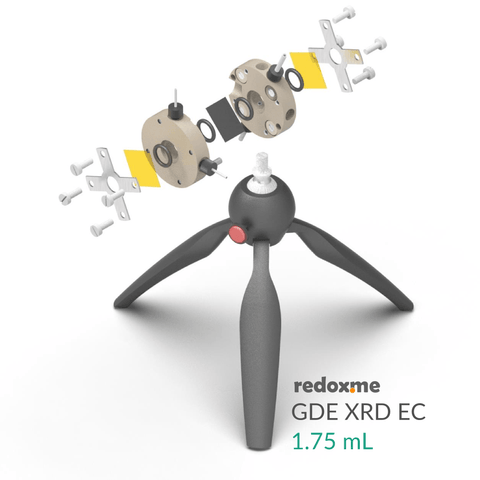

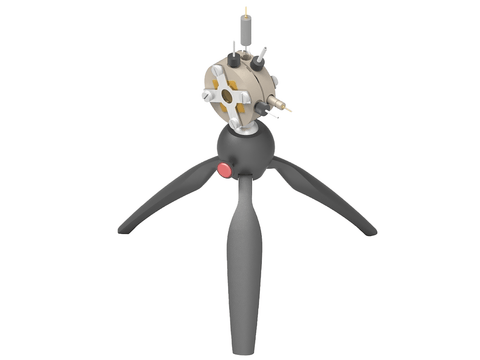

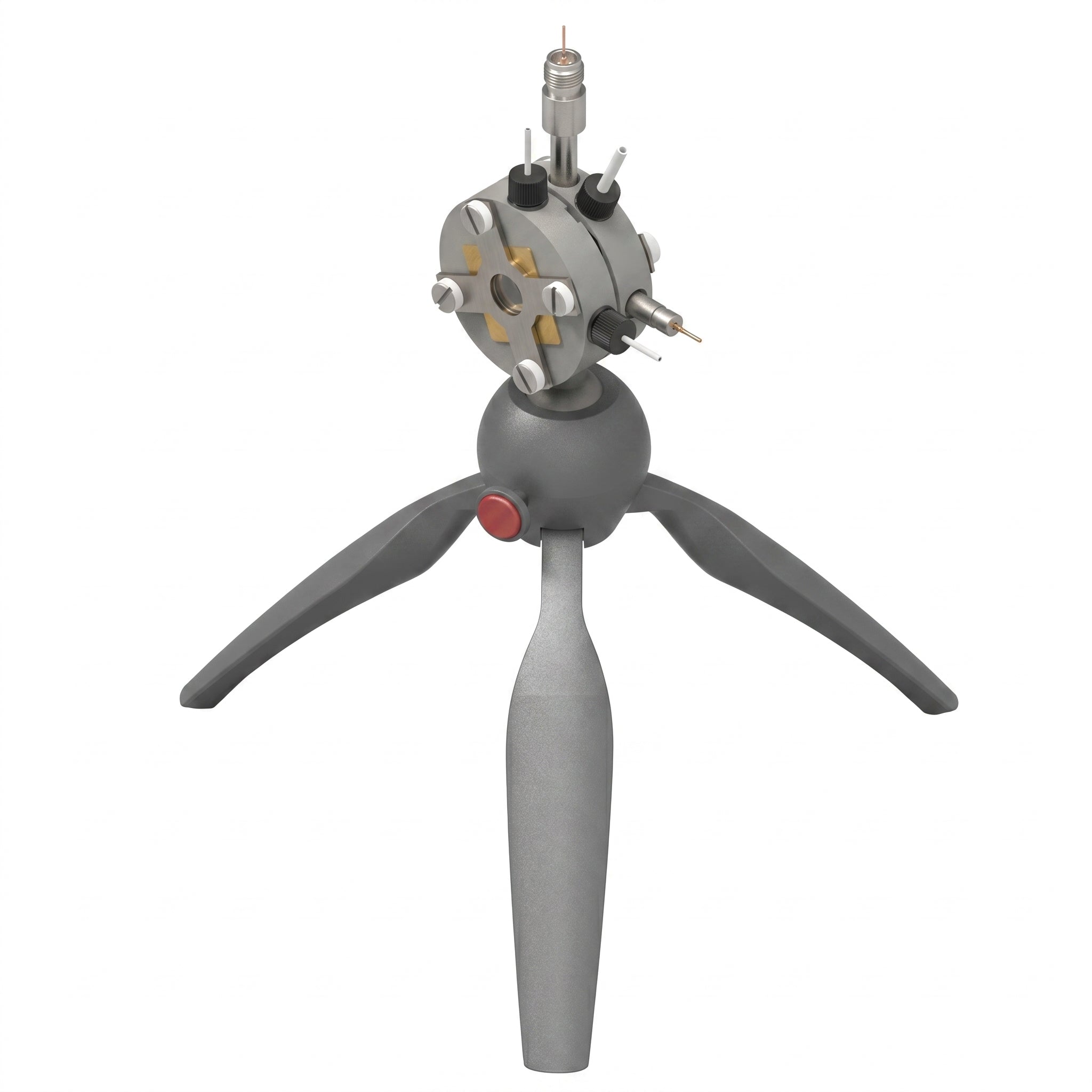

This is a horizontally mounted, multi-purpose electrochemical cell for Gas Diffusion Electrode (GDE), designed to be used with X-Ray Diffractometry. The cell consists of two individual compartments: the liquid flow chamber and the gas chamber, which are placed on opposing faces of a GDE. Both compartments are held in place by magnetic/screw mount, providing a leakage-free O-Ring seal. The liquid chamber can be filled with an electrolyte using a syringe or an electrolyte can continuously flow through it using an external reservoir and peristaltic pump (both not included). The dry chamber is gas-tight enabling continuous flow of a gas carrier and evacuation of the gas products for sampling using standard analytical instruments such as a residual gas analyzer. Both compartments are made of a polyether ether ketone (PEEK) material. The cell is meant to be used with standard reference electrode having 6 mm in diameter and counter electrode in the form of a rod/helix with 6 mm in diameter and 15 mm active.

Application note:
GDE XRD Electrochemical Cell is used to effectively screen and validate GDEs for metal-air batteries, water electrolyzes, and alkaline fuel cells. It also enables in-situ X-Ray Diffraction acquisition. It is used as an air-breathing, thermodynamically referenced electroanalytical cell that allows to mimic the Janus arrangement of the GDE in a metal–air cell: one face freely exposed to gases, the other wetted by electrolyte.

Specification:
nominal exposure area: 1 cm2
electrolyte thickness: 12 mm
liquid flow chamber volume: 1.75 mL
maximum GDE thickness: 4 mm
minimum GDE size: 17 mm x 25 mm
recommended GDE size: 25 mm x 25 mm
electrode plug diameter: 6 mm

Setup includes:
1 x Magnetic Mount Gas Diffusion Electrode X-Ray Diffraction Electrochemical Cell – MM GDE XRD EC 1.75 mL (or Gas Diffusion Electrode X-Ray Diffraction Electrochemical Cell – GDE XRD EC 1.75 mL)
1 x Metal Wire Auxiliary Electrode - 35HX15 0.6/250 mm (Platinum)
1 x Reference electrode (aqueous Ag/AgCl or non-aqueous Ag/AgCl)
