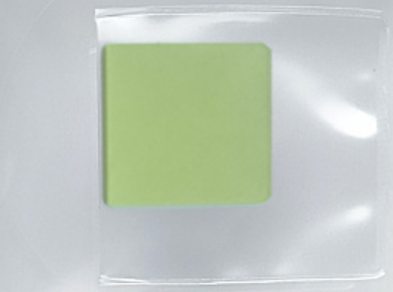

DyScO3 Dysprosium scandate Crystal Substrate
DyScO3 Dysprosium scandate Crystal Substrate
|
Main Parameters
|
|
|
Crystal structure
|
orthorhombic Pnma space group, Perovskite structured
|
| Growth method | Czochralski |
|
Unit cell constants
|
a=5.44, b=5.71, c=7.89
|
|
Melting point
|
2200 ℃
|
|
Density
|
6.9 g/cm3
|
|
Dielectric constant
|
21 @1 MHz
|
|
Hardness
|
6-6.5 Mohs
|
|
Size
|
5x5 mm, 10x10 mm, customized sizes are available upon request
|
|
Thickness
|
0.5mm, 1.0mm
|
|
Polishing
|
Single or double side polished
|
|
Crystal orientation
|
(001), (100), (110)
|
|
Orientation precision
|
+/-0.5°
|
|
Surface Roughness Ra:
|
< 0.5 nm (5µm x 5µm area) polishing side
|
|
Package
|
Sealed in a class 100 clean bag packed in class 1000 clean room
|
About DyScO3 Dysprosium scandate Crystal
DyScO3 substrate is a twin-free perovskite crystal with a high melting point. They are mainly used for high-temperature superconductors (YBCO) and magnetic Epitaxial films growth, because DyScO3 and YBCO have small lattice mismatch, and no structural phase change at the crystal interface.
