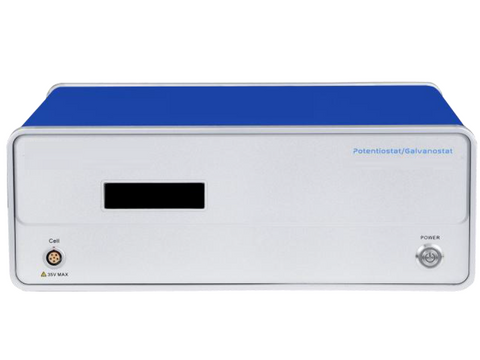

MSE PRO Single-Channel Potentiostat/Galvanostat with EIS Function, Electrochemical Products, MSE Supplies LLC, MSE Supplies

Corrtest Single-Channel Potentiostat/Galvanostat with EIS Function

SKU: CS350MA

  • $ 14,23995
  • Save $ 1,58000

Request a Quote

MSE PRO Single-Channel Potentiostat/Galvanostat with EIS Function

MSE Supplies offers a high-performance Single-Channel Potentiostat/Galvanostat with EIS capability. The system integrates a DDS arbitrary function generator, potentiostat / galvanostat, and a frequency response analyzer (FRA). Equipped with dual 24-bit Delta-Sigma A/D converters, it delivers exceptional stability along with high-resolution measurements—down to 1 µV for potential and 1 pA for current.

Featuring over 40 electrochemical techniques, this device is widely used in corrosion studies, energy research, materials science, and analytical electrochemistry. Additionally, with the use of a current booster, the device can extend its output current up to ±20A, ±40A, or ±100A, and supports a higher compliance voltage of up to ±30V.

Customers from Australia, South Korea, India, Turkey and Kazakhstan please contact Corrtest directly.

Applications:

  • Energy materials (Li-ion battery, solar cell, fuel cell, supercapacitors, etc);
  • Reactive mechanisms of electrosynthesis, electrodeposition (electroplating), anodic oxidation, electrolysis;
  • Metallic corrosion; corrosion inhibitor, coating and cathodic protection efficiency;
  • Electrocatalysis (HER, OER, ORR, CO2RR, NRR, water splitting).

Technical Specifications:

Support 2-, 3-, or 4-electrode system
Potential control range ±10V
Current control range ±2A
Potential control accuracy 0.1% × full range ±1mV
Current control accuracy 0.1% × full range
Potential resolution 10µV (>100Hz), 3µV (<10Hz)
Current sensitivity 1pA
Rise time <1µs (<10mA), <10µs (<2A)
Reference electrode input impedance 10¹²Ω || 20pF
Current range 2nA–2A, 10 ranges
Compliance voltage ±30V
Maximum current output ±2A
CV and LSV scan rate 0.001mV–10,000V/s
CA and CC pulse width 0.0001–65,000s
Current increment during scan 1mA @1A/ms
Potential increment during scan 0.076mV @1V/ms
SWV frequency 0.001–100kHz
DPV and NPV pulse width 0.0001–1000s
AD data acquisition 16bit @1MHz, 20bit @1kHz
DA Resolution 16bit, setup time: 1µs
Minimum potential increment in CV 0.075mV
IMP frequency 10µHz–1MHz
Low-pass filters Covering 8-decade
Operating System Windows 10/11
Interface USB 2.0
Weight / Dimensions 6.5kg, 36 × 30 × 16 cm
Power 90–240V AC 50/60Hz
EIS (Electrochemical Impedance Spectroscopy)
Signal Generator
Parameter Value
Frequency range 10µHz–1MHz
AC amplitude 1mV–2500mV
DC Bias -10V to +10V
Output impedance 50Ω
Waveform Sine wave, triangular wave, square wave
Wave distortion <1%
Scanning mode Logarithmic/linear, increase/decrease
Signal Analyzer
Integral time Minimum: 10ms or the longest time of a cycle
Maximum time 10⁶ cycles or 10⁵s
Measurement delay 0~105s
DC offset compensation
Potential automatic compensation range -10V to +10V
Current compensation range -1A to +1A
Bandwidth 8-decade frequency range, automatic and manual setting


Implemented Electrochemical Techniques

Stable Polarization

  • Open Circuit Potential (OCP)

  • Potentiostatic (I-T curve)

  • Galvanostatic

  • Potentiodynamic (Tafel plot)

  • Galvanodynamic (DGP)

Transient Polarization

  • Multi Potential Steps

  • Multi Current Steps

  • Potential Stair-Step (VSTEP)

  • Galvanic Stair-Step (ISTEP)

Chrono Methods

  • Chronopotentiometry (CP)

  • Chronoamperometry (CA)

  • Chronocoulometry (CC)

Voltammetry

  • Linear Sweep Voltammetry (LSV)

  • Cyclic Voltammetry (CV)

  • Staircase Voltammetry (SCV)

  • Square Wave Voltammetry (SWV)

  • Differential Pulse Voltammetry (DPV)

  • Normal Pulse Voltammetry (NPV)

  • Differential Normal Pulse Voltammetry (DNPV)

  • Alternating Current Voltammetry (ACV)

  • 2nd Harmonic AC Voltammetry (SHACV)

  • Fourier Transform AC Voltammetry (FTACV)

Electrochemical Impedance Spectroscopy (EIS)

  • Potentiostatic EIS (Nyquist, Bode)

  • Galvanostatic EIS

  • Mott–Schottky Analysis

  • Potentiostatic/ Galvanostatic EIS (Optional Frequencies)

  • EIS vs. Time (Single Frequency)

Corrosion Analysis

  • Cyclic Polarization Curve (CPP)

  • Linear Polarization Curve (LPR)

  • Electrochemical Potentiokinetic Reactivation (EPR)

  • Electrochemical Noise (EN)

  • Zero Resistance Ammeter (ZRA)

Battery Testing

  • Battery Charge and Discharge

  • Galvanostatic Charge/Discharge (GCD)

  • Potentiostatic Charging and Discharging (PCD)

  • Intermittent Titration Techniques (PITT, GITT)

Amperometry

  • Differential Pulse Amperometry (DPA)

  • Double Differential Pulse Amperometry (DDPA)

  • Triple Pulse Amperometry (TPA)

  • Integrated Pulse Amperometric Detection (IPAD)

Stripping Voltammetry

  • Potentiostatic Stripping

  • Linear Stripping

  • Staircase Stripping

  • Square Wave Stripping

  • Differential Pulse Stripping

  • Normal Pulse Stripping

  • Differential Normal Pulse Stripping

Extensions

  • Data Logger

  • Electrochemical Stripping/Deposition

  • Bulk Electrolysis with Coulometry (BE)

  • Rs Measurement

MSE Supplies offers a wide range of electrochemical potentiostat/galvanostat systems. Please contact us for selecting the right model for your application.
