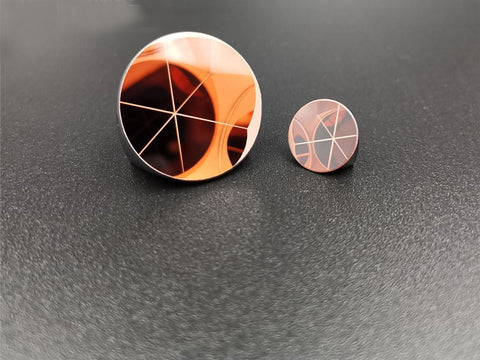

Corner Cube Prisms
To better serve you, we would like to discuss your specific requirement, Please Contact Us for a quote.
MSE supplies offers customized Corner Cube Prisms with different materials, dimension, surface qualify, etc.

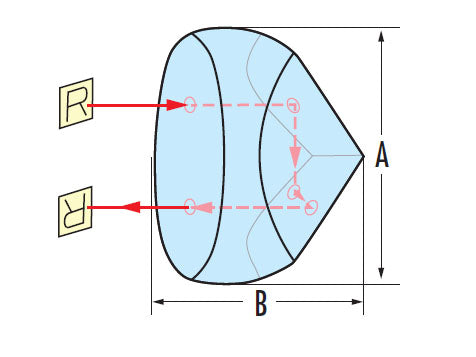

Corner Cube Prisms, which are also called retroreflectors, are in the shape of the corner of a cube. It can reflect the incident beam parallel to the incident direction, regardless of the position of the prisms. The image will be inverted and reflected through 180° even if the angle of incidence is not zero. They are widely used in beam steering, land surveying, laser resonator cavities, electronic distance measurement, etc.
MSE Supplies can offer a variant of optical elements, with different materials, size, surface quality and coating. Please contact us for customization or bulk orders.
Technical Data:
| Parameters | Value |
| Material |
|
| Size (mm) |
5-120 |
| Size Tolerance (mm) | +0/-0.01~+0/-0.1 |
| Thickness Tolerance (mm) | ±0.01~±0.1 |
| Irregularity (P-V) @ 632.8nm | λ/10~λ/2 |
| Surface Quality | 20/10~60/40 |
| Centration | <30”~3' |
| Clear Aperture (%) | >90 |
| Bevel | Protective bevel as needed |
| Coating | Uncoated, AR, BBAR, Mirror |
