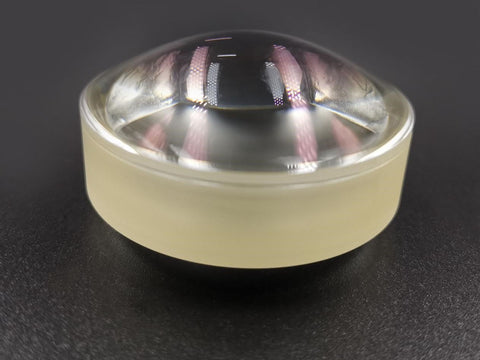

Aspherized Achromatic Lenses

To better serve you, we would like to discuss your specific requirement, Please Contact Us for a quote.

MSE supplies offers customized Aspherized Achromatic Lenses with different materials, dimension, surface qualify, etc.

As indicated by the name, Aspherized Achromatic Lenses can reduce both chromatic aberration and spherical aberration. The function is achieved by gluing an optical element with a polymer component. The polymer component is not scratch free and thus needs to be handled carefully. They are widely used in condenser lens system, high numerical aperture imaging system, etc.

MSE Supplies can offer a variant of optical elements, with different materials, size, surface quality and coating. Please contact us for customization or bulk orders.

Technical Data:

Parameters Value
  • Optical Glass
  • Fused Silica
Diameter (mm) 10-300
Diameter Tolerance (mm) +0/-0.01~+0/-0.1
Thickness Tolerance (mm) ±0.01~±0.1
Focal Length Tolerance (%) ±1
Irregularity (P-V) @ 632.8nm λ/10~2λ
Surface Quality 20/10~60/40
Aspherical Equation Customize
Centration <30”~3'
Clear Aperture (%) >90
Bevel Protective bevel as needed
Coating Uncoated, AR, BBAR
