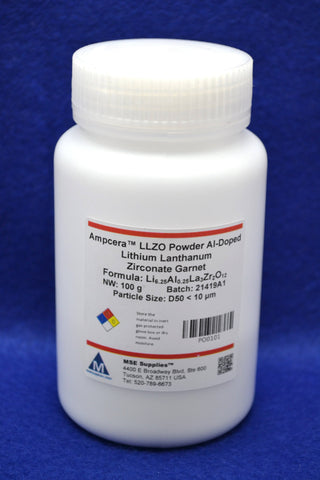

Ampcera™ LLZO Powder Al-Doped Lithium Lanthanum Zirconate Garnet, Pass 325 Mesh, D50 < 10um

  • $ 69500

Bulk orders? Please contact us for Bulk Quotation.

Qty (Each) Price (Each)
1 - 9 $ 695.00
10 - 10+ $ 556.00

Ampcera LLZO Powder, Al-doped, Li6.25Al0.25La3Zr2O12, Aluminum Doped Lithium Lanthanum Zirconate Garnet, Pass 325 Mesh, D50 < 10um

Download SDS

Check publications using our LLZO

  • Product Number: PO0101
  • Vendor: Ampcera Inc.
  • Nominal Composition: Li6.25Al0.25La3Zr2O12 (Al-doped LLZO), Aluminum-doped Lithium Lanthanum Zirconate Garnet
  • Theoretical Density: 5.2 g/cm3
  • Particle Size: D50: < 10 µm
  • Purity: synthesized from 99.9% precursor materials
  • Phase: cubic phase, garnet structure
  • Bulk Ionic Conductivity: >5 x 10-4 S/cm at room temperature
  • Product Form: Powder
  • Size: pass 325 mesh, D50 ~ 10 um
Applications
Solid state electrolyte material for all solid state lithium ion batteries. Al-doped LLZO, with nominal composition Li6.25Al0.25La3Zr2O12, is used as a solid electrolyte material for Li-based batteries because of its high Lithium ionic conductivity and chemical stability with respect to lithium as well as its stability at elevated temperatures.
* All solid state electrolyte materials sold by MSE Supplies are under the trademark of Ampcera.
Powder processing equipment:
HIGH ENERGY VERTICAL PLANETARY BALL MILL FOR BATTERY MATERIALS PROCESSING
GLOVE BOX HIGH ENERGY VERTICAL PLANETARY BALL MILL FOR BATTERY MATERIALS PROCESSING
References

Solid electrolytes open doors to solid-state batteries
History of lithium superionic conductors. The latest generation is LGPS
