AMEL Frequency Response Analyzer (EIS Analyzer), Model 2700 Z-Pulse
SKU: AMEL-2700

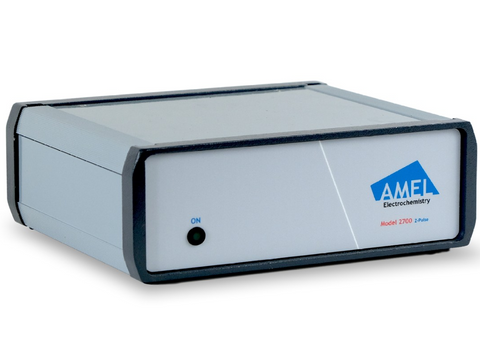

AMEL Frequency Response Analyzer (EIS Analyzer), Model 2700 Z-Pulse
MSE Supplies is the exclusive distributor of AMEL electrochemistry instruments in the U.S., offering direct access to their cutting-edge solutions.
General Description
Model 2700 embeds the synergistic combination of impedance spectroscopy (Z) and high-speed pulse or waveform generation (pulse) paving the way to new and exciting possibilities in electrochemistry. AMEL’s Frequency Response Analyzer pushes the researcher further in the investigation and characterization of supercapacitors and rechargeable batteries, electrochemical conversion for energy storage, corrosion and corrosion protection studies, deposition of high performances metal films, characterization of semiconductors and quality controls.
Note: Model 2700 is not a standalone system for EIS measurements; it functions as an accessory and must be paired with a compatible AMEL potentiostat to perform EIS analysis.
Technical Specifications
| Sine | |
| Frequency Range | 1μHz to 10MHz |
| Amplitude | 20Vpp @1kHz |
| Noise | ±0,1dB if < 100kHz |
| ±0,15dB if < 5MHz | |
| ±0,3dB if ≤ 10MHz | |
| Square | |
| Frequency Range | 1μHz to 10MHz |
| Rise & fall time | 8ns |
| Overshoot | < 1% |
| Duty Cycle | 0,01% to 99,99% |
| Asymmetry | < 0% of the period + 5ns @ 50% duty cycle |
| Jitter (RMS) | < 50ps |
| Triangle | |
| Frequency Range | 1μHz to 10MHz |
| Symmetry | 0% to 100% in 0,1% steps |
| Pulse | |
| Period | 100ns to 1000s |
| Pulse Width | 15ns to 1000s |
| Edge Time | 20ns to 1s |
| Overshoot | < 1% |
| Jitter (RMS) | < 50ps |
| Arbitrary | |
| Frequency Range | 1μHz to 10MHz |
| Sampling Rate | 50MS/s |
| DAC Resolution | 14bit |
| Output Range | ±12V at frequency < 10MHz |
| DC offset | ±12V at open circuit |
| Resolution | 12 BIT |
| Accuracy | 0,4% of range |
| Power Supply, Connections and Dimensions | |
| Computer Connection | Universal Serial Bus (USB) |
| Voltage Mains | 12 to 24V DC, 1A max |
| External Power | Model 2560 8-channel Power Supply |
| 110V/60Hz (provided if Model 2560 is not present) | |
| Dimensions (L x W x H) | 200 x 215 x 80mm |
| Weight | 1,5kg |
Spare Parts
| 191/SUPS24 | Power supply for single unit 110V/Hz |
| 191/BNCFRA | Set of 3 BNC cables for connection with potentiostats |
| 191/DUMMY | Dummy cell for Frequency Response Analyzer |
AMEL also provides customized electrodes tailored to specific experimental needs. Please contact us for more information.
We cannot sell AMEL Products to customers outside US and Canada.
