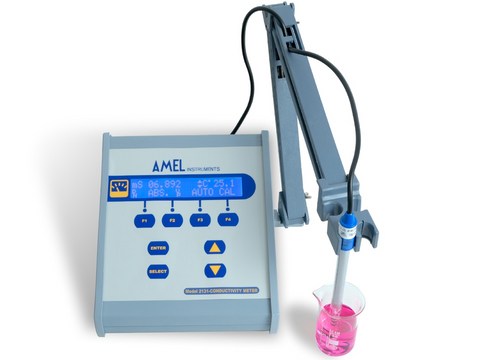

AMEL Digital Precision Conductivity & Temperature Meter, Model 2131
SKU: AMEL-2131
AMEL Digital Precision Conductivity & Temperature Meter, Model 2131
MSE Supplies is the exclusive distributor of AMEL electrochemistry instruments in the U.S., offering direct access to their cutting-edge solutions.
Overview
Model 2131 is the new digital conductivity meter by AMEL, born to bring precision and reliability, typical features of all AMEL instruments over the past 60 years, to a whole new level of flexibility and quality. The instrument uses its microprocessor core to full power, allowing for tuning of the measuring method according to the electrode’s needs seeking for unrivalled precision and stability. Model 2131 runs continuously, leading to fast and precise measurements of flowing liquids or rapid evolving systems, along with real-time accuracy. An high speed USB interface allows the user to take full advantage of this stream of accurate data for the most demanding applications. Specifically suited for continuous operation, Model 2131 exhibits a large display, a sturdy yet sensitive keyboard and a splash proof surface that, together with a high quality aluminum case, makes the conductivity meter from AMEL your unstoppable workmate. The high level of automation and the friendliness of many advanced functions make this unit the ideal instrument for research laboratories, industrial applications and quality control analysis. Model 2131 comes with USB interface, high quality universal power supply and integrated electrode stand to satisfy the rising level of expectations of our customers.
Technical Specifications
| Parameter | Range | Resolution | Accuracy |
| Conductivity | 0 to 1,9999μS/cm | 0,1nS ±3digit | ±2% |
| 0 to 19,999μS/cm | 1nS ±3digit | ±1% | |
| 0 to 199,99μS/cm | 10nS ±3digit | ±0,5% | |
| 0 to 1,9999mS/cm | 100nS ±3digit | ±0,5% | |
| 0 to 19,999mS/cm | 1μS ±3digit | ±0,5% | |
| 0 to 199,99mS/cm | 10μS ±3digit | ±1% | |
| 0 to 1,9999S/cm | 100μS ±3digit | ±1,5% | |
| Temperature | -20,0 to +120,0°C | 0,1°C | ±0,2°C upon PT1000 class |
| Total Dissolved Solid (TDS) | 0 to 1000g/L | ||
| Reference Temperature | 0 to 120°C | ||
| Coefficient of Variation | 0 to 10%/°C | ||
| Standard Solutions (automatically recognized) |
1413μS/cm | ||
| 12880μS/cm | |||
| 111800μS/cm | |||
| Temperature Sensor | PT1000 | ||
| Cell Constant | 0,1 to 32,0cm | ||
| Interface | |||
| Display | 2x 20 characters backlight LCD | ||
| Keyboard | 8-keys | ||
| Calibration Menu | Microprocessor-based system with step-through menu | ||
| Communication Interface | USB 1.0 (COM port simulation) | ||
| Power Supply and Dimensions | |||
| Voltage Mains | 110 to 220V AC ±10% 50/60Hz | ||
| Power Consumption | 10W maximum | ||
| Dimensions (L x W x H) | 220 x 210 x 120mm | ||
| Weight | 1,8kg | ||
Accessories and Spare Parts
The following conductivity cells and temperature probes can be used with Model 2131 Conductivity and Temperature Meter, please refer to AMEL’s conductivity cells and temperature probes catalogues for drawings and dimensions.
- 9863 – Buffer solution pH 4.01, 250mL
- 9865 – Buffer solution pH 7.00, 250mL
- 9866 – Buffer solution pH 9.21, 250mL
- 192/K10 – Double platinum electrode cell, K = 10cm, glass body
- 192/K1 – Double platinum electrode cell, K = 1cm, glass body
- 192/K0,1 – Triple platinum tip cell, K = 0.1cm, glass body
- 192/K0,01 – Triple platinum tip cell, K = 0.01cm, glass body
- 2192/K1 – Double platinum electrode cell, K = 1cm, glass body, PT1000 temperature probe
- 196 – Double platinum electrode cell, K = 1cm, plastic body, TC100 temperature probe
- 197 – Double platinum electrode cell, K = 1cm, plastic body
- 2196 – Double platinum electrode cell, K = 1cm, plastic body, PT1000 temperature probe
- 198 – Triple platinum ring cell, K = 1cm, glass body
- 2198 – Triple platinum ring cell, K = 1cm, glass body, PT1000 temperature probe
- 193 – Double graphite ring cell for measurements on pastes and muds
- 194 – Glass cell for flow measurements
- PT1000 – Temperature probe with glass body
- PT1000/P – Temperature probe with plastic body
AMEL also provides customized electrodes tailored to specific experimental needs. Please contact us for more information.
We cannot sell AMEL Products to customers outside US and Canada.
