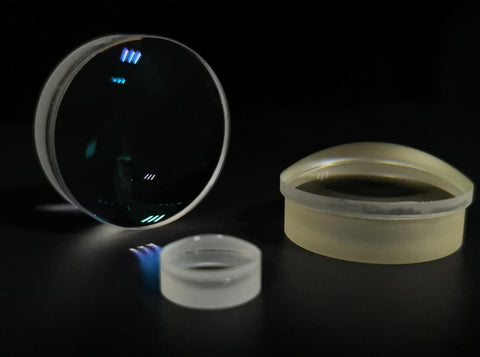

Achromatic Lenses

To better serve you, we would like to discuss your specific requirement, Please Contact Us for a quote.

MSE supplies offers customized Achromatic Lenses with different materials, dimension, surface qualify, etc.

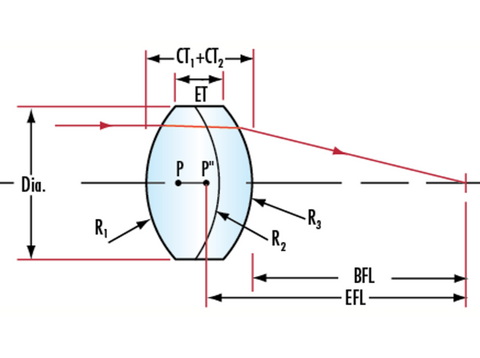

Achromatic Lenses, as indicated by the name, are used to reduce the chromatic aberrations from broadband light sources so lights with different wavelength can focus on the same plane. They are usually made of two elements: one element is a negative (concave) element and the other is a positive (convex) element. The lens elements are mounted next to each other, often cemented together, and shaped so that the chromatic aberration of one is counterbalanced by that of the other. They are widely used in different optical systems, such as lasers, telescopes, fiber optics, etc.

MSE Supplies can offer a variant of optical elements, with different material, size, surface quality and coating. Please contact us for customization or bulk orders.

Technical Data:

Parameters Value
Material
  • Optical Glass
  • Fused Silica
  • Silicon
  • Germanium
  • ZnSe
  • Sapphire
  • CaF2
  • MgF2
  • BaF2
Diameter (mm) 0.5-500
Diameter Tolerance (mm) 0-0.01~0-0.1
Thickness Tolerance (mm) ±0.01~±0.1
Focal Length Tolerance (%) ±1
Irregularity (P-V) @ 632.8nm λ/10~λ/2
Surface Quality 10/5~60/40 Scratch/Dig
Centration <30”~3'
Clear Aperture (%) >90
Bevel Protective bevel as needed
Coating Uncoated, AR, BBAR
