50 ml Cell Chamber

50 ml Cell Chamber

Buy Redox.me products from MSE Supplies at the best value.

This is the replacement chamber for 50 mL voltammetry cells including the following models:
BEC 50 mL - Basic Electrochemical Cell
PTFE BEC 50 mL - PTFE Basic Electrochemical Cell
2-CEC 50 mL - Two-compartment Electrochemical Cell
2-CEC+ 50 mL - Two-compartment Electrochemical Cell with additional inlet/outlet
2-CMEC 50 mL - Two-compartment Multiport Electrochemical Cell
Autoclavable 2-CEC 50 mL - Autoclavable Two-compartment Electrochemical Cell
BE H-Cell 50 mL - Basic Electrochemical H-Cell 50 mL

Application Note:

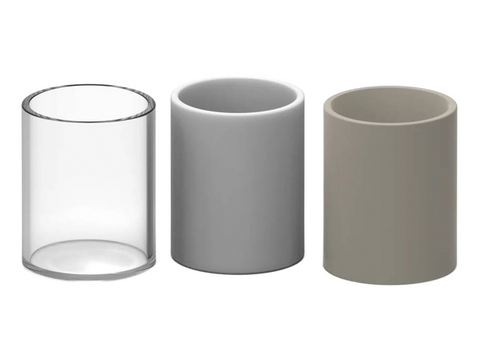

Glass chamber is typically used with acidic electrolytes. PEEK chamber is used with alkaline electrolytes. PTFE chamber is used whenever glass and PEEK material fail.

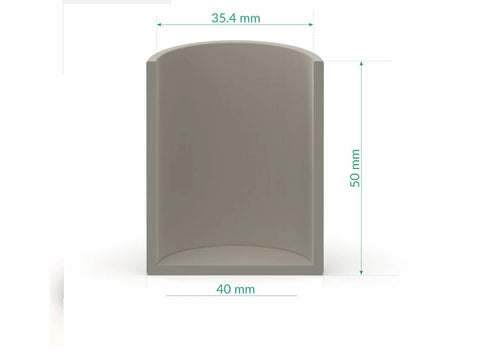

Specification:

Height: 50 mm
Wall thickness: 2.3 mm
Internal diameter: 35.4 mm
External diameter: 40 mm

Product Includes:

1 x cell chamber 50 mL of selected material
