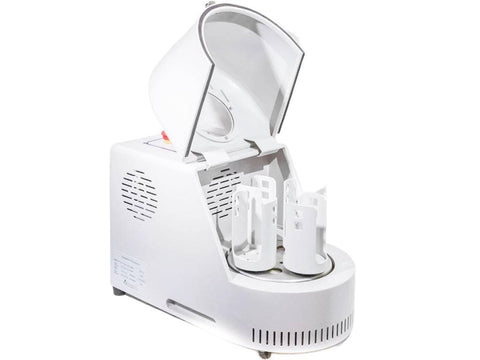

4L (4 x 1L) Vertical High Energy Planetary Ball Mill with Compact Design

  • 5,49500
  • Save $ 45500


Product Features:

a. Special gear design which lowers the noise to about 15-20 db.

b. Stable rotation speed.

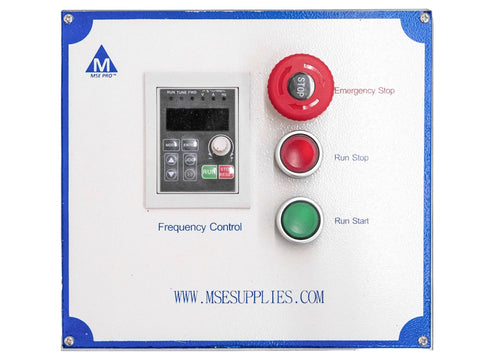

c. LCD control panel.

d. Programmable milling segments.

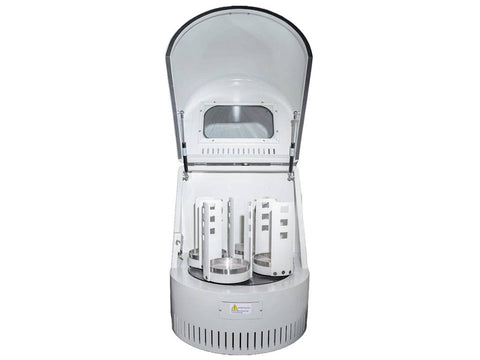

e. Safety view port.

f. Reliable heavy duty design.

g. One year warranty included and multiple year warranty options available (consumables not included).

h. Customized power supply (110V, 220V or 380V depending on location and power ratings). Please specify when placing the order.

Available Model and Specifications. Please Contact Us for quotation.

Model Number Total Volume (L)

Maximum Rotation Speed (RPM)

Power (kW) Material Capacity (L) Outer Dimension (mm)
VPMC-0.4 0.4 870 0.25 0.12 530*300*320
VPMC-1 1 670 0.75 0.35 530*300*320
VPMC-2 2 670 0.75 0.65 730*430*580
VPMC-4 4 670 0.75 1.3 800*470*560
VPMC-6 6 670 0.75 2 800*470*560
VPMC-8 8 580 1.5 2.5 880*600*640
VPMC-10 10 580 1.5 3 880*600*640
VPMC-12 12 580 1.5 4 880*600*640
VPMC-16 16 510 3 5 950*600*680
VPMC-20 20 430 4 6 1200*760*750
VPMC-40 40 390 5.5 13 1300*870*830
VPMC-60 60 360 7.5 20 1500*950*1000
VPMC-100 100 240 11 35 1750*1100*1350
