PECF H-Cell 2x1.5 mL - Photo-Electrochemical Flow H-Cell

  • £4,54500

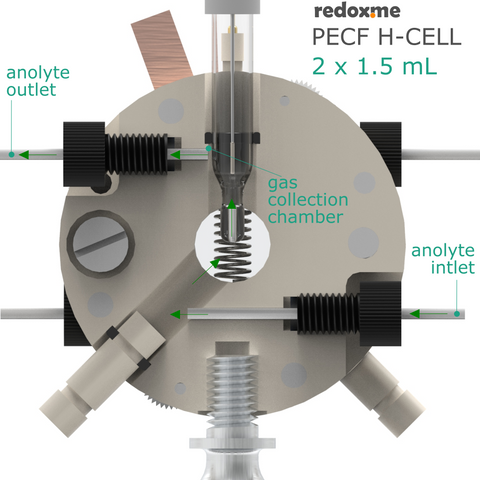

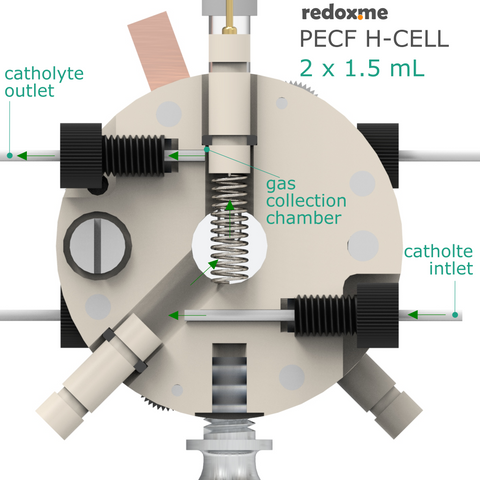

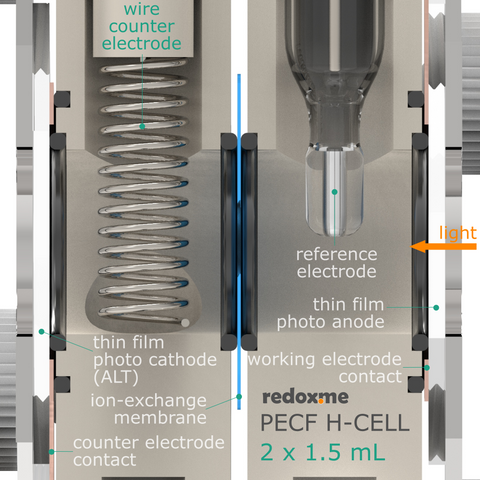

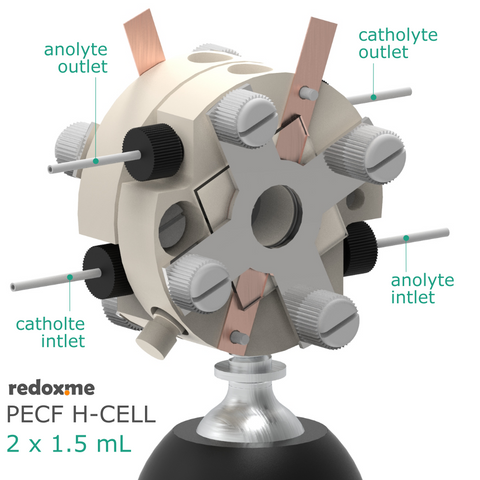

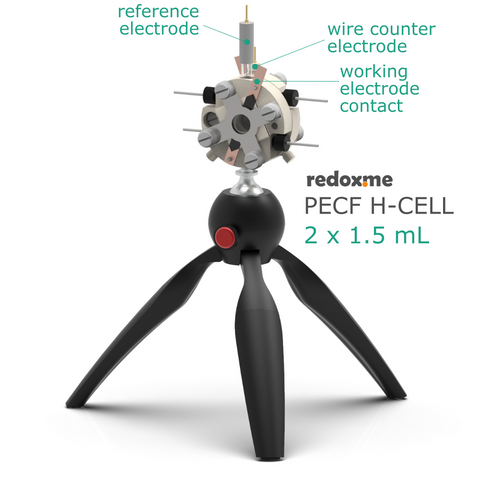

This is a horizontally mounted, double compartment Photo-Electrochemical Flow H-Cell used to simultaneously investigate thin film photo-anode and photo-cathode. The cell elements are made of PEEK. It well fits aqueous (EPDM/FKM O-Rings) and organic solvent (FFKM O-Rings) electrolyte requirements. The construction is liquid-tight having two separate chambers, each equipped with electrolyte inlet and outlet. This allows solutions flow and evacuation of reaction products. Chambers are separated with an ion-exchange membrane (e.g. DuPont’s Nafion® membrane), so the electrochemial products appearing at photo-anode and cathode do not affect the opposite electrode.

Application note
This is a horizontally mounted, double compartment Photo-Electrochemical Flow H-Cell used to simultaneously investigate thin film photo-anode and photo-cathode. The cell elements are made of PEEK. It well fits aqueous (EPDM/FKM O-Rings) and organic solvent (FFKM O-Rings) electrolyte requirements. The construction is liquid-tight having two separate chambers, each equipped with electrolyte inlet and outlet. This allows solutions flow and evacuation of reaction products. Chambers are separated with an ion-exchange membrane (e.g. DuPont’s Nafion® membrane), so the electrochemial products appearing at photo-anode and cathode do not affect the opposite electrode.

Specification
nominal exposure area: 1 cm2
flow chamber volume: 2x1.5 mL

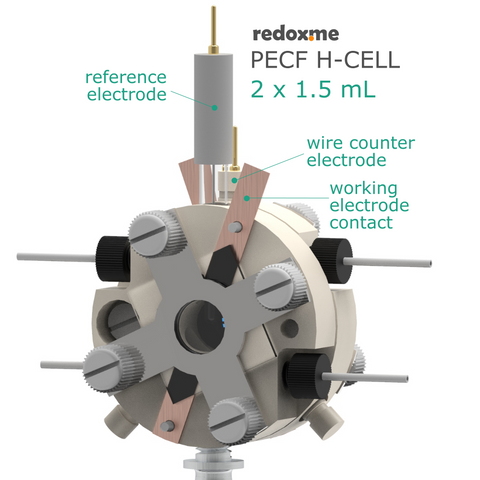

electrode plug diameter: 6 mm
recommended substrate size: 25 mm x 25 mm
maximum substrate thickness: 4 mm
maximum membrane thickness: 4 mm

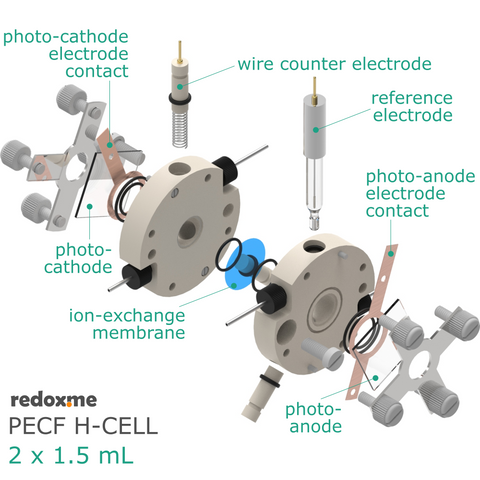

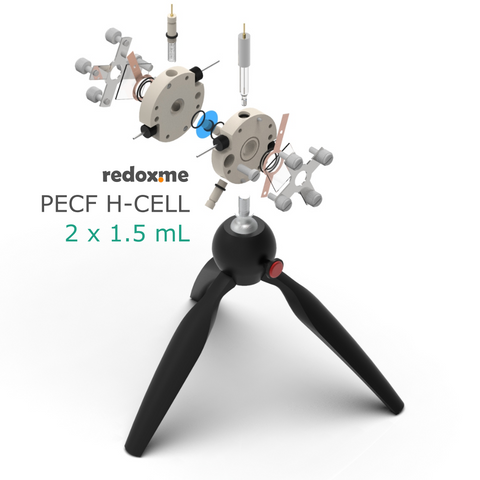

Product includes
2 x flow chamber
2 x lid
2 x sample holder
2 x plug – 0005CPEMA

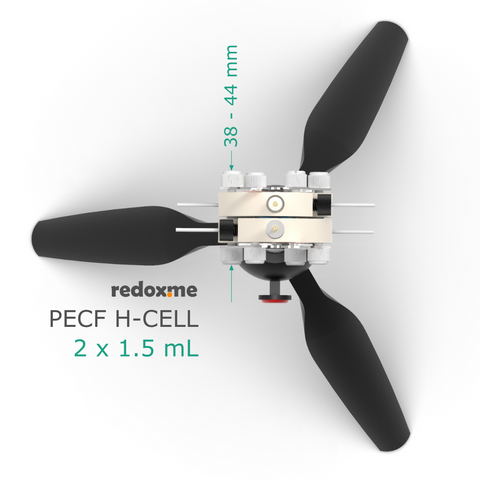

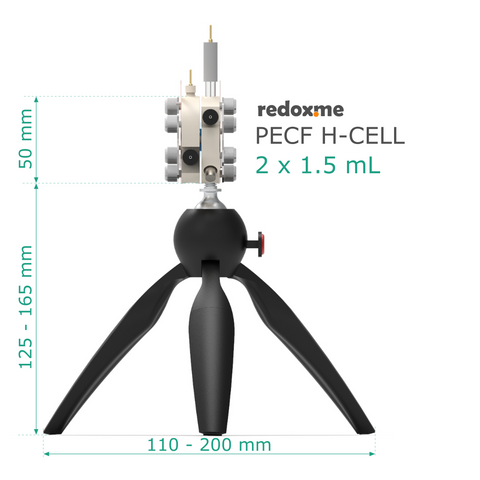

1 x table tripod – 0028PHYCM
1 x set of Nylon screws – 0029PNYCM

Related products
Fused quartz window glass
Glassy (vitreous) carbon substrates – GC 25/25/custom
Nafion Membrane - 20 mm dia.
