MSE PRO Silver (Ag) Single Crystal Substrates

MSE PRO Silver (Ag) Single Crystal Substrates

SKU: SU3446

  • £1,58800
  • Save £10700

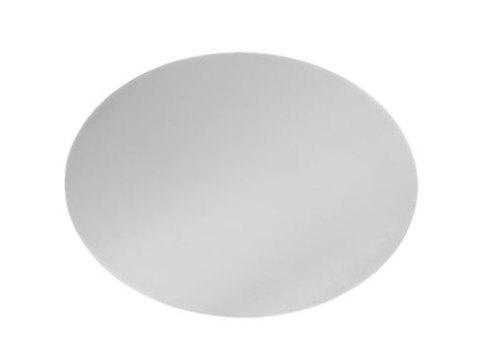

MSE PRO™ Silver (Ag) Single Crystal Substrates

The MSE PRO™ Silver is a white lustrous metal with good ductility and malleability. Silver is known to be the best reflector of visible light and has the highest electrical and thermal conductivity of all metals. The properties of silver make it widely used to electronics, optics, and other fields.

    Both standard and custom made Silver (Ag) single crystals and substrates are available at MSE Supplies. Please contact us for more information.

    Specifications:

    Crystal Structure Cubic
    Purity 99.9999% (6N)
    Crystal Orientation (100), (111) +/- 0.5 degree
    Surface Normal Aligned Accuracy ~ 0.1 °
    Surface Polishing Single Side Polished (SSP)
    Surface Roughness Ra < 0.03 µm
    Size Diameter 7 mm, Thickness 1.25 mm, other sizes are available upon request
    Production Method Bridgeman and czochralski
    Density 10.5 g/cm3
    Melting Point 961.93 °C / 1234.93 °K
    Boiling Point 2211.85 °C / 2484.85 °K
    Thermal Conductivity
    429 [ 300 K ] W · m-1 · K-1
    Coefficient of Linear Thermal Expansion 19.2 x 10-6 K-1
    Electrical Resistivity
    1.59 x 10-8 [ 293 K ] Ωm
    Molar Volume 10.27 cm3
    Neutron Scattering Length
    0.597
    Number of Isotopes 46
