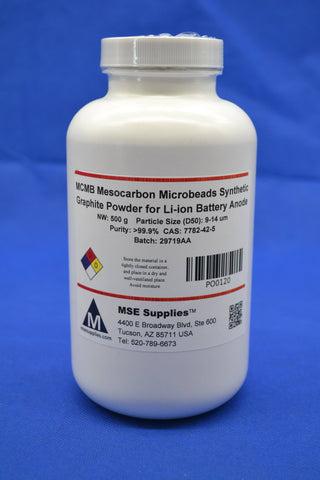

MSE PRO MCMB Mesocarbon Microbeads Synthetic Graphite Powder, 500g, 9-14um for Li-ion Battery Anode
MCMB (mesocarbon microbeads) synthetic graphite is prepared from petroleum pitch or coal tar. MCMB is one of the promising carbon anode materials for Li-ion batteries. MCMB has high specific capacity and a spherical morphology, which is beneficial for high packing density of the anode. The low surface area of MCMB can minimize the unfavorable side reactions during the charge-discharge process.
Download SDS
Product SKU#: PO0120
Particle size distribution:
- D10 = 6 - 10 um
- D50 = 9 - 14 um
- D90 = 16 - 22 um
- Purity (Carbon content): > 99.9%
- Tap density: ~ 1.25 g/cm3
- Shape: Spherical powder
- BET specific surface area (SSA): 1.0 - 1.5 m2/g (typical value 1.38)
- Moisture content: 0.035%
- Iron (Fe) impurity: < 30 ppm
- First Discharge Capacity: around 300 mAh/g (typical value 327 mAh/g)
- First discharge efficiency: around 93% (typical value 94-95%)
Advantages:
a. Long cycle life > 2000 cycles
b. High energy density
c. High capacity
