MSE PRO Magnetron Ion Sputtering Coater

SKU: MA0603

  • $ 8,51595
  • Save $ 1,02200

Request a Quote

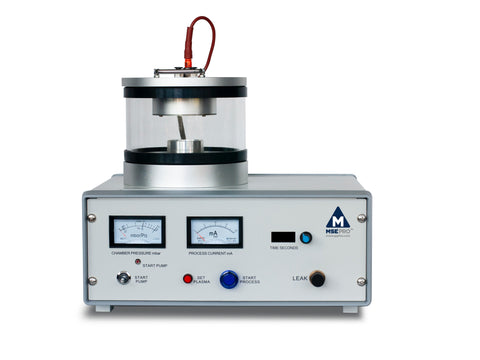

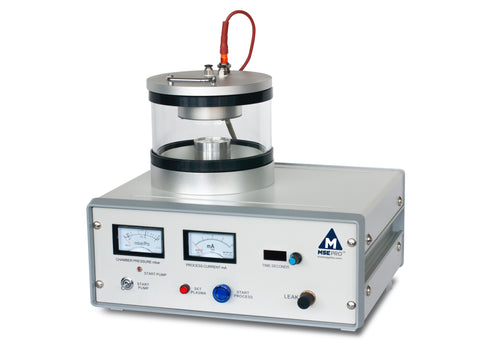

MSE PRO™ Magnetron Ion Sputtering Coater

MSE Supplies offers a Magnetron Ion Sputtering Coater, which is specifically designed for the preparation of samples for Scanning Electron Microscopes (SEM) in laboratory settings. It is widely used for coating non-conductive or heat-sensitive SEM samples with materials like gold, silver, and platinum to enhance imaging quality. Additionally, it is well-suited for surface treatment, minimizing damage to substrate samples.

Operable under low vacuum conditions, it can achieve rapid setup within 5 minutes with the use of an appropriate vacuum pump. The instrument generates minimal heat, avoiding damage to substrate samples from plasma. It provides a user-friendly experience and is easy to operate.

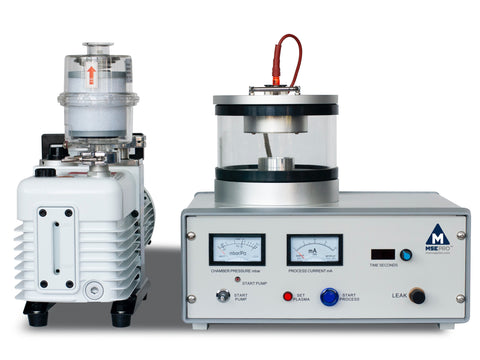

Vacuum pump as standard accessory is included. A cooling water chiller is optional.

Brand: MSE PRO™

Manufacturer: MSE Supplies LLC

Technical Specifications

SKU# MA0603
Vacuum Pump Set (Oil required) Rotary Vacuum Pump
Rotary Pumping Speed 50Hz: 8m3/h (2.2L/s)
Max Sputtering Current 100 mA
Vacuum Limit  2 Pa
Working Pressure 20-8 Pa
Vacuuming Time < 5 Min (to 2Pa)
Vacuum Measure Measuring range from atmosphere to 2X10-2 mbar
Chamber φ150*120mm, Scratch resistant quartz glass
Magnetron Target Source (Not Included) Target size φ50*0.1 mm/Target source: Au, Ag, Pt
Operation Method Instruction Manual
Weight  45 Kg
Target-to-Substrate Distance 22 - 40 mm
Size, L*W*H 360*300*380 mm
Power Supply AC 110V 60Hz
Power Consumption < 1500 W
Cooling Method Water Cooling (Optional)
Warranty One year limited warranty with lifetime product support
