MSE PRO Customized Silicon-on-Insulator (SOI) Wafer (4"-8")

To better serve you, we would like to discuss your specific requirement, Please Contact Us for a quote.

Silicon-on-Insulator (SOI) wafer is a structure including the device layer (top), buried oxide layer (middle), and handle wafer (bottom). This technology allows for the continuous miniaturization of microelectronic devices. It has several advantages over a traditional silicon wafer, like low leakage currents and low parasitic capacitance. It is used in various applications, including MEMS, sensors, telecommunications, and power devices. For example, the researchers at Toyota Central R&D Labs proposed simple T-shaped support as a solution to the tilt deformation caused by the residual stress. This solution could potentially allow for the development of high-precision sensors and actuators.

Types of SOI Wafers:

SIMOX: Device Layer Thickness < 250nm

BESOI: Device Layer Thickness between 1 μm ~ 300μm

SIMBONDDevice Layer Thickness 200nm

Smart-Cut: Device Layer Thickness < 1.5μm


Parameter Specification Range
Diameter 100 ~ 200mm
Device Layer
Thickness 0.1 ~ 300μm

P or N

(please specify if you need certain dopant)

Orientation (100) or (111) or (110)
Box Layer
Thickness up to 3.5μm
Uniformity ± 2.5%
Handle Wafer

P or N

(please specify if you need certain dopant)

Resistivity Customized

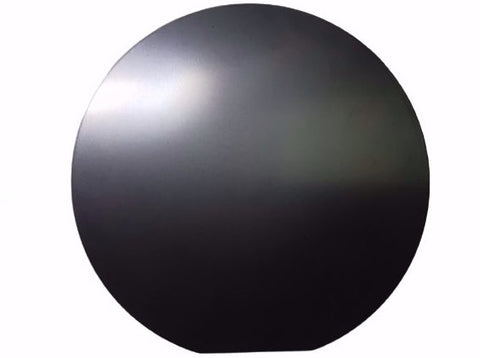

*The figure is for reference only. The actual product may look different due to configuration difference.


1. The Genesis Process/sup TM: a new SOI wafer fabrication method. In 1998 IEEE International SOI Conference Proceedings (Cat No. 98CH36199), pp. 163-164. IEEE, 1998.

2. Layout controlled one-step dry etch and release of MEMS using deep RIE on SOI wafer. Journal of microelectromechanical systems 15, no. 3 (2006): 541-547

3. Improved anchor design for flat MEMS structure by suppressing deformation due to buried-oxide stress on silicon-on-insulator wafer. Journal of Micromechanics and Microengineering 31, no. 4 (2021): 045001.
