5N (99.999%) Silicon (Si (P-type)) 1-6mm Pieces Evaporation Materials - MSE Supplies LLC

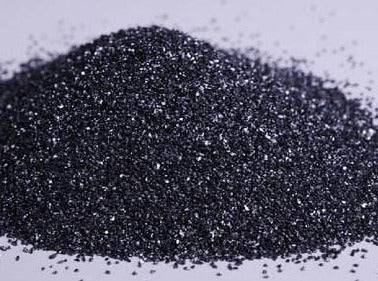

MSE PRO 5N (99.999%) Silicon (P-type Si) Pieces (1-6mm) Evaporation Materials

  • £8500

MSE PRO™ 5N (99.999%) Silicon (P-type Si) Pieces (1-6mm) Evaporation Materials

Silicon (Si) is a hard, brittle crystalline solid with a blue-grey metallic luster, and is a tetravalent metalloid and semiconductor. Highly purified elemental silicon is used in semiconductor electronics, which is essential to the metal–oxide–semiconductor (MOS) transistors and integrated circuit chips used in most modern technology such as smartphones and other computers. It is evaporated under vacuum for circuit device and data storage device. It can also be used as coating material for SnOcathodes.

The dimensions and purities can be customized upon request. Please contact us for customization or bulk orders

Name Silicon (P-type)
Chemical Formula Si (P-type)
Dopant Boron
CAS # 7440-21-3
Atomic Number 14
Molecule Weight (g/mol) 28.0855
Color/Appearance Dark Gray with a Bluish Tinge, Semi-Metallic
Purity ≥99.999%, 5N
Thermal Conductivity (W/m.K) 150
Melting Point (°C) 1,410
Coefficient of Thermal Expansion (/K) 2.6 x 10-6
Theoretical Density (g/cm3) 2.32
Z Ratio 0.712
E-Beam Fair
Temp. (°C) for Given Vap. Press. (Torr) 10-8:  992
10-6:  1,147
10-4:  1,337
E-Beam Crucible Liner Material Graphite, Tantalum

MSE Supplies offers a variety of crucibles for evaporation materials. We can customize the dimensions based on your requirements.


1. Nanoscale silicon wires synthesized using simple physical evaporation. Applied Physics Letters 72, no. 26 (1998): 3458-3460.

2. Nanoscale Si coating on the pore walls of SnO2 nanotube anode for Li rechargeable batteries. Chemical communications 46, no. 4 (2010): 622-624.
