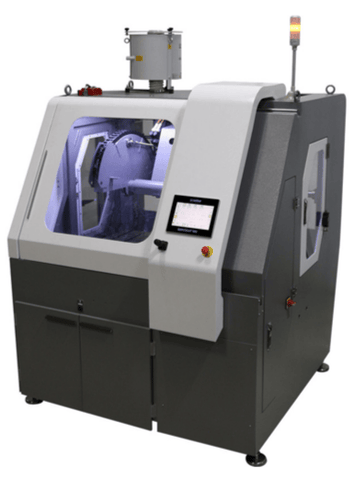

Metkon Automatic Multi-Target Abrasive Cutting Machine SERVOCUT 602-AX(-R)

To better serve you, we would like to discuss your specific requirement, Please Contact Us for a quote.

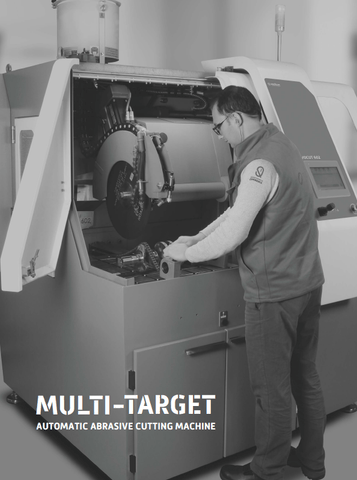

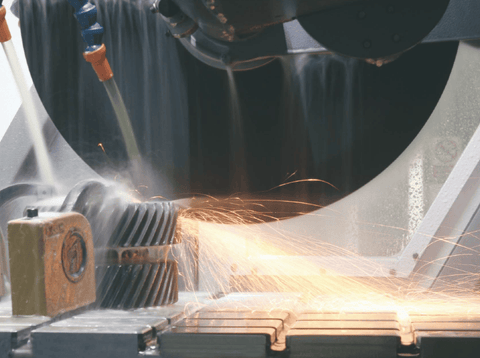

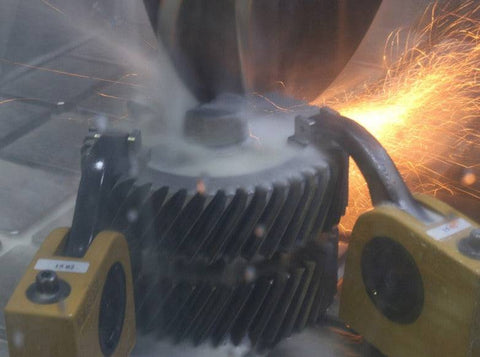

MSE Supplies offers an Automatic Multi-Target Abrasive Cutting Machine SERVOCUT 602-AX(-R) from Metkon Instrument Inc. SERVOCUT 602 is an advanced high capacity cutting machine especially designed for cutting extra-large and multiple specimens. It offers the advantage of combining different cutting techniques and methods to obtain superior cut surfaces for a broad range of heavy-duty cutting applications. It has a robust and reliable design with low noise and emission levels. The modern and sturdy design with a powerful 15 kW cutting motor ensures fast and efficient cutting through the hardest and most complex materials with precise servo motor driven axis controls. It is used by small to large international companies and laboratories in many different industries, including: Automotive, Aerospace, Bearings, Foundries, Steelworks, Electronics, Universities and Institutes, etc.

Country of Origin: Made in Turkey

Manufacturer: Metkon Instruments Inc.

Main Features:

  • Modern and sturdy design
  • Extraordinary access for easy handling
  • For cutting large and multiple specimens
  • Ability to work with cut-off wheels up to Ø600 mm
  • Cutting capacity up to Ø225 mm solid stock
  • 100Hx500D mm for rectangular specimens (cutting capacity can be increased up to 200Hx550D mm with optional Combined Cut feature)
  • Powerful 15 kW cutting motor
  • Unique belt protection system
  • Electronic brake system
  • Variable cut-off wheel speed 600-2400 RPM
  • Ability to set fixed peripheral speed of cut-off wheel from 20 to 60 m/s
  • Overload display and protection system
  • Accurate Servo motor driven table and wheel movement for precise and fast positioning
  • Joystick with adjustable speed control
  • Stainless steel table (772x710 mm) with 560 mm Y-axis movement range
  • Servo motor driven cut-off wheel positioning system on X-axis
  • 540 mm positioning range on X-axis

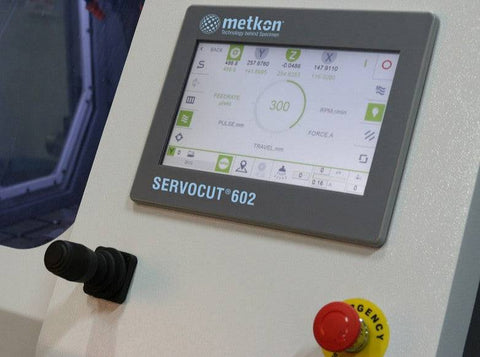

  • Programmable with 9.7" HMI touch screen control
  • Siemens PLC control unit

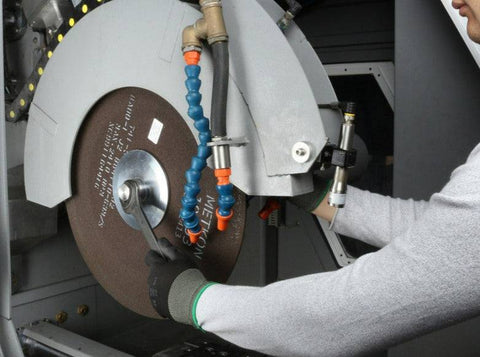

  • Automatic cut-off wheel diameter measurement and automatic starting position adjustment according to cut-off wheel wear

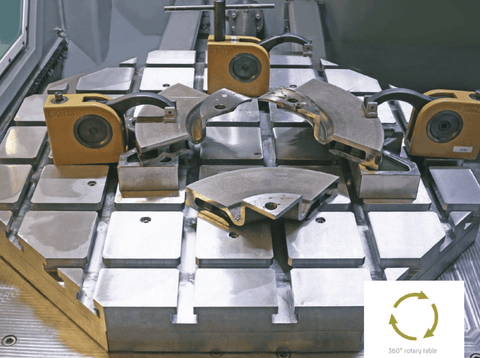

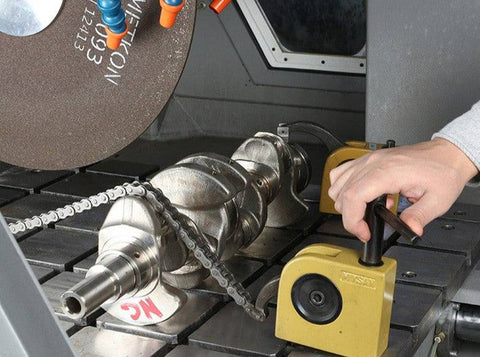

  • Positioning System allows clamping several components simultaneously
  • Automatic chop cutting and automatic table feed cutting  systems
  • Automatic cutting feed rate control
  • Extra advanced cutting methods: "Multi-Target Cutting, Serial Parallel Cutting, Rapid Pulse Cutting, Table Oscillation Cutting, Instafeed Cutting, Automatic Chop Cutting, Automatic Table Feed Cutting, Joystick Cutting"
  • Powerful LED illumination
  • Robust construction
  • Cut-Off Wheel Diameter Measurement
  • Inbuilt Lubrication System
  • Includes a standard set of cutting consumables composed of:
    *An assortment of 10 cut-off wheels with 600 mm dia.
    *5 lt of METCOOL cooling fluid

        For more details of SERVOCUT 602 Abrasive Cutting Machines, click here.

        Compared with SERVOCUT 602-AX, SERVOCUT 602-AX-R offers Parallel Cutting along X-Axis and Multi Target Cutting.

          Technical Specifications

          Model 602-AX 602-AX-R
          Max. Cut-off Wheel Diameter, (mm) Ø600 Ø600
          Max. Cutting Capacity, (mm) Ø225 Ø225
          Max. Cutting Capacity, HxD, (mm) 100x500 100x500
          Z-Axis Travel, (mm) 340 340
          Y-Axis Travel, (mm) 560 560
          X-Axis Travel, (mm) - 540
          T-Table Dimension, (mm) 772x710 772x710
          T-Slot dimension, (mm) 12 12
          Cutting Motor Power (S1), (kW) 15 15
          Variable Wheel Speed, (RPM) 600-2400 600-2400
          Wheel Diameter Measurement Standard Standard
          Constant Peripheral Wheel Speed Standard Standard
          Cutting Feed Rate, (μm/s) 20-5000 20-5000
          HMI Touch Screen Controller, (inch) 9.7 9.7
          Chop Cutting in Z- Axis Auto Auto
          Table Feed Cutting in Y-Axis Auto Auto
          Parallel Cutting in X-axis - Standard
          Multi Target Cutting - Standard
          Table Oscillating Cutting Standard Standard
          Rapid Pulse Cutting Standard Standard
          Smart Feed Control Standard Standard
          Step Cut; Segment Cut; Diagonal Cut Optional Optional
          Automatic Cleaning System Optional Optional
          Central Lubricating System Optional Optional
          Size, WxDxH, (cm) 184x173x236 184x173x236
          Weight, (kg) 1600 1600
          Recirculation Cooling Uni, (lt) 200 200
          Power Supply 400 V, 3 phase, 50/60 Hz 400 V, 3 phase, 50/60 Hz


          • Additional Cutting Methods Software Package
          • Power Supply Transformer kit for 200-240 VAC, 3 phase, 50/60 Hz
          • Cooling Systems

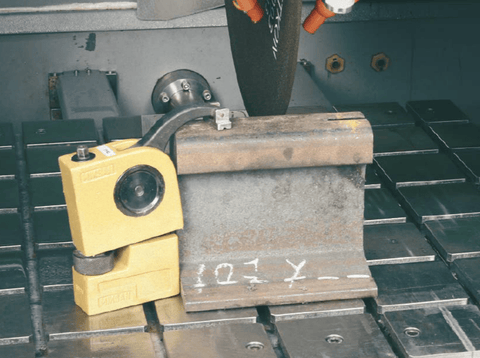

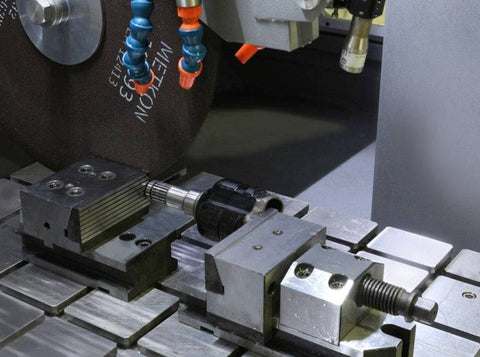

          • Clamping Devices
          • Spare Part Kit
          • Other Accessories


          • Treno Series Abrasive Cut-off Wheels
          • Cutting Fluid

          For accessories and consumables, please contact us so we can help you choose appropriate products for your needs.

          About Metkon: Since 1993, METKON as a young and dynamic company, has delivered more than 20,000 instruments globally. Metkon provides innovative Sample Preparation and Testing Instruments and Consumables for Materials and Microstructure Analysis. It offers expertise and know-how to our customers worldwide to enable them to reach the "True and Excellent Sample".

          MSE Supplies is an authorized distributor for Metkon Instrument Inc.
