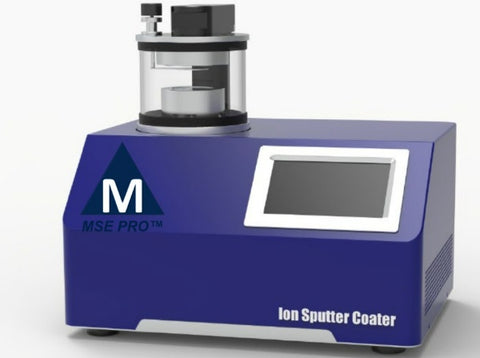

MSE PRO High Vacuum Magnetron Ion Sputtering Coater for SEM Sample Preparation
To better serve you, we would like to discuss your specific requirement, Please Contact Us for a quote.
MSE Supplies offers a high vacuum magnetron ion sputtering coater that is suitable for spraying gold, platinum, etc., coating on FE-SEM specimens. It uses high quality and constant power magnetron sputtering power supply to ensure constant coating deposition rate. The use of magnetron cathodes is also effective in reducing plasma exposure to the sample, thermal effects and ion bombardment damage. It is widely used to coat non-conductive SEM samples for better imaging. It is also excellent for surface treatment and coating when using other sputtering targets. High vacuum, less than 3Pa can be achieved quickly when using proper vacuum pumps. It is user friendly and easy to operate using touch panel control.
Brand: MSE PRO™
Manufacturer: MSE Supplies LLC
MSE Supplies is a leading Sputtering Targets supplier and offers custom-made high purity sputtering targets.
|Vacuum Pump Set||Oil free diaphragm pump + molecular pump set|
|Pumping Speed||>0.7m3/h pump + 60 L/S molecular pump|
|Vacuum Measure||Measuring range from atmosphere to 10-3Pa|
|Gas Control||MFC gas mass flow controller (50SCCM Ar)|
|Chamber Size||150*110mm scratch resistant quartz glass|
|Magnetron Target Source||Target size 50*0.1-3mm (recommended thickness>0.2mm)/ with manual stop
Target source: precious metal source such as Au/Pt or conventional metal such as Cr, W, Ag (with Ar gas)
|Operation Method||Touch screen control|
30kg/480mm length*385width* 434mm high
|Power Supply||110-220V AC, 50-60Hz|
|Cooling Method||Air cooling|
|Warranty||One year limited warranty with lifetime product support|
