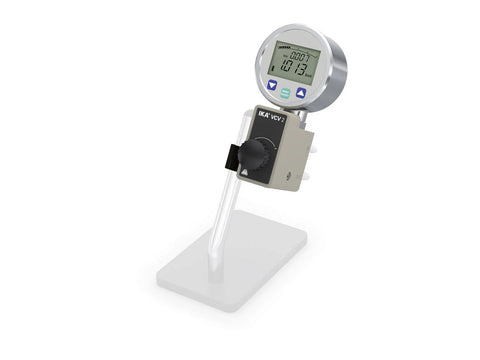

IKA VCV 2 Vacuum Control Valve Digital

  • $ 1,41512

Buy IKA products from MSE Supplies at the best value.

MSE Supplies is an authorized distributor of IKA.

Product Details

Item number: 0020004893

Allows for adjusting the set vacuum value on the digital manometer

Rod and stand Not included in delivery

About IKA

Founded in 1910 as a supplier for pharmacies and hospitals, the company left bombed-out Cologne for Staufen im Breisgau in 1942. There it quickly became the world's leading company for laboratory technology as well as dispersing, stirring and kneading machines.

Technical Data of IKA VCV 2 Vacuum Control Valve Digital

Connection diameter suction side 8 mm
Connection diameter pressure side 8 mm
Input pressure 1 - 1050 mbar
Display LCD
Pressure unit / scale mbar, hPa, mmHg, Torr
Control range 1 - 1000 mbar
Resolution pressure 50 mbar
Measurement uncertainty 1 mbar
Medium temperature (gas) 5 - 40 °C
Venting valve yes
Material in contact with medium Al2O3, PP, stainless steel
Housing material PP
Fastening stand / clamp
Dimensions (W x H x D) 65 x 255 x 140 mm
Weight 0.7 kg
Permissible ambient temperature 0 - 60 °C
Permissible relative humidity 80 %
Protection class according to DIN EN 60529 IP 65
DC Voltage 2x 1.5 V=
