Protected Silver Mirrors - MSE Supplies LLC

Protected Silver Mirrors

  • $ 2380

Protected Silver Mirrors

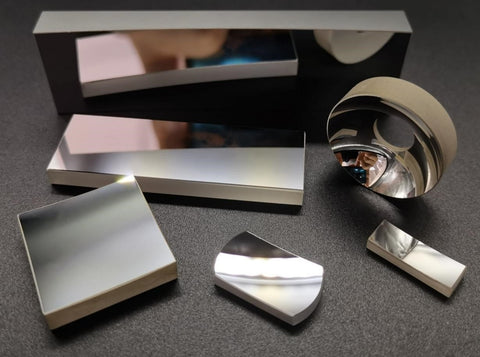

MSE supplies offers Silver Mirrors whose coating is protected by a thin glass layer to prevent tarnishing. Silver mirrors have the highest reflection rate in visible to near infrared spectrum. Reflection over 95% can be achieved. It is suitable for application like femtosecond pulsed lasers. Standard product's dimension can be as large as 50mm in diameter or edge length. We also offer mirrors with different materials, coatings and size, please contact us for customization.

Technical Data:

Below are the parameters for standard products. For customized products with different material, size, surface quality and coating, please contact us.

Parameters Value
Material N-BK7/H-K9L
Dimension (mm)
  • Φ10*2
  • Φ12.7*2
  • Φ20*3
  • Φ25.4*3
  • Φ30*4
  • Φ50*5
  • 10*10*2
  • 20*20*3
  • 30*30*4
  • 50*50*5
Dimension Tolerance (mm) 0-0.1
Flatness
 3(0.5)
Parallelism (arcminute) 3-5
Coating Ag

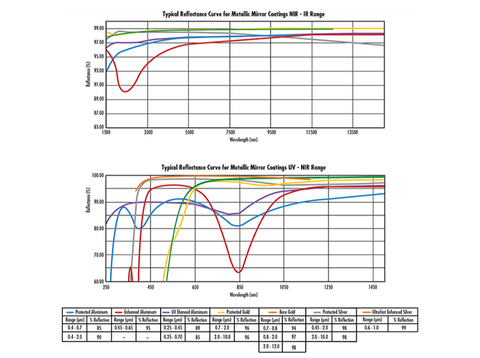

Reflectivity >95%
Surface Quality 60/40 Scratch/Dig
