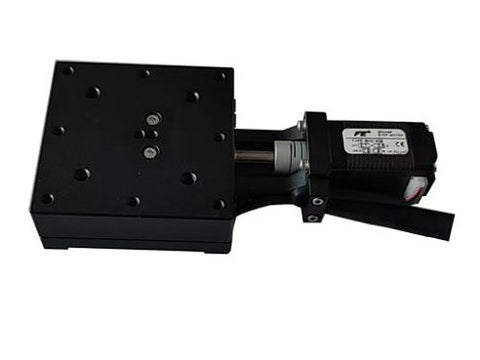

MSE PRO Ultra-Thin Stepper Motorized Translation Stages (Travel 20mm)
SKU: OPMS0006
To better serve you, we would like to discuss your specific requirement. Please Contact Us for a quote.
MSE PRO™ provides Ultra-Thin Stepper Motorized Translation Stages (Travel 20mm). Motorized translation stages are precision positioning devices designed to provide automated linear motion with high accuracy and repeatability. These stages are equipped with stepper or servo motors, allowing precise control over position, speed, and acceleration. Ideal for applications in research, manufacturing, and inspection, motorized translation stages are commonly used in fields such as photonics, microscopy, semiconductor testing, and automation systems. They feature robust construction, low backlash, and smooth motion, ensuring reliable performance even under demanding conditions. With a variety of travel ranges, load capacities, and control options, these stages can be easily integrated into complex motion systems, enabling precise alignment and positioning in both single-axis and multi-axis configurations.
Key Features
Ultra-precision motorized stage using high subdivision stepper motor driver, high resolution.
Imported high-precision ultra-thin linear slide to ensure the high accuracy , compact, is the first choice for fine adjustment.
Travel Range
20mm
Resolution
0.125μm
Repeatability
＜1μm
Straightness
＜2μm
Parallelism
＜5μm
Pitching（θy）
10″（50μrad）
Yawing（θz）
10″（50μrad）
Maximum Speed
5mm/sec
Load Capacity
10kg
Weight
1.5kg
MSE Supplies can offer a variety of optomechanical components, with different size, freedom of regulation and optical elements combination. Pleasecontact usfor customization or bulk orders.
