Palladium Sputtering Target Pd,  MSE Supplies

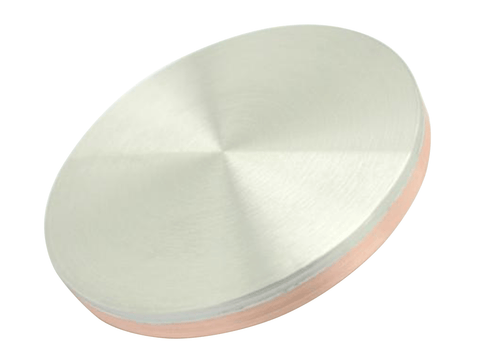

MSE PRO Palladium Sputtering Target Pd

To better serve you, we would like to discuss your specific requirement, Please Contact Us for a quote.

Palladium, together with rhodium, ruthenium, osmium, iridium, and platinum form a group of elements referred to as the platinum group metals (PGM). Palladium is a lustrous silver-white metal. It has a face-centered cubic crystalline structure, at ordinary temperatures it is strongly resistant to corrosion in air and to the action of acids. It is attacked by hot acids, and it dissolves in aqua regia. It forms many compounds and several complex salts. Palladium has a great ability to absorb hydrogen (up to 900 times its own volume).

Palladium Sputtering Target Features

Name: Palladium
Symbol: Pd
Atomic Number: 46
Atomic Mass: 106.42 amu
Melting Point: 1552.0 °C (1825.15 K, 2825.6 °F)
Boiling Point: 2927.0 °C (3200.15 K, 5300.6 °F)
Number of Protons/Electrons: 46
Number of Neutrons: 60
Classification: transition metal
Crystal Structure: Cubic
Density @ 293 K: 12.02 g/cm3
Color: white

Palladium (Pd) Sputtering Targets

  • Purity: 99.99%
  • Shape: Discs, Plate, Step (Dia 500mm, Thickness 1mm)
  • Rectangle, Sheet, Step (Length 1000mm, Width 500mm, Thickness 1mm)
  • Seamless Tube(Diameter< 300mm, Thickness >3mm ), Seamless Circle (Diameter< 300, Thickness >3mm)

Palladium (Pd) Evaporation Material

  • Purity: 99.99% Density---12.02 g/cm3
  • Shape: Wire, Cylinder, Pellet, Taper, Irregular Piece
  • Specification: Custom-made

Palladium Metal Product (Pd Wire, Rod, Foil, Slab, Disk, Tube )

  • Purity: 99.99%
  • Speciafication: Wire (diameter 0.002mm - 1mm), Rod (diameter 1mm - 100mm ),Foil (thickness to 0.05mm - 0.1mm, width < 300mm) Slab (thickness 0.1mm- 20mm, width < 400mm), Disc (diameter < 350mm, thickness 0.1mm - 30mm ) Tube (OD: 0.5-300mm, Thickness: 0.05-5.0mm)

Palladium Powder (Pd Powder)

  • Purity: 99.99%
  • Speciafication: 1um, 10um (1340 mesh), 48um (300 mesh)
