MSE PRO Multi-Axis Motorized Aluminum Alloy Rotation Stages (Angle 360°, 150x150mm)
SKU: OPMS0374
To better serve you, we would like to discuss your specific requirement.
Please Contact Us for a quote.

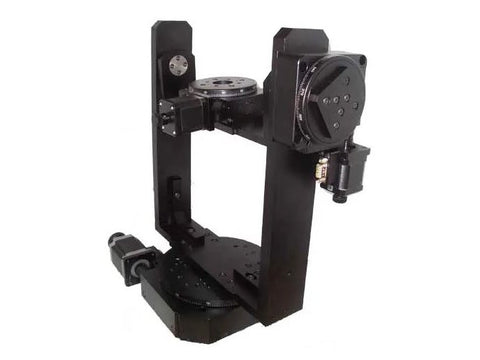

MSE PRO™ Multi-Axis Motorized Aluminum Alloy Rotation Stages (Angle 360°, 150x150mm)
MSE PRO™ provides Multi-Axis Motorized Aluminum Alloy Rotation Stages (Angle 360°, 150x150mm). Motorized translation stages are precision positioning devices designed to provide automated linear motion with high accuracy and repeatability. These stages are equipped with stepper or servo motors, allowing precise control over position, speed, and acceleration. Ideal for applications in research, manufacturing, and inspection, motorized translation stages are commonly used in fields such as photonics, microscopy, semiconductor testing, and automation systems. They feature robust construction, low backlash, and smooth motion, ensuring reliable performance even under demanding conditions. With a variety of travel ranges, load capacities, and control options, these stages can be easily integrated into complex motion systems, enabling precise alignment and positioning in both single-axis and multi-axis configurations.
Key Features
|
Angle Range |
360° |
|
Table Size |
150×150mm |
|
Transmission Ratio |
180∶1 |
|
Actuator Type |
Worm Gear |
|
Travel Guide |
Bearing |
|
Stepper Motor (1.8°) |
SST57D3301 |
|
Base Material |
Aluminum Alloy |
|
Surface Treatment |
Black-anodized |
|
Load Capacity |
10kg |
|
Weight |
10kg |
|
Resolution |
0.01°=36″(non MicroStep) 0.0005°=1.8″(20 MicroStep Driver in use) |
|
Speed |
25°/sec |
|
Repeatability |
0.005°=18″ |
|
Positional Accuracy |
0.01°=36″ |
|
Surface Roundness |
15µ |
|
Backlash |
0.005°=18″ |
|
Transversal Deviation |
20µ |
|
Lost Motion |
0.005°=18″ |
|
Parallelism |
100µ |
