MSE PRO High Purity Boron Nitride (BN) Crucible with Lid

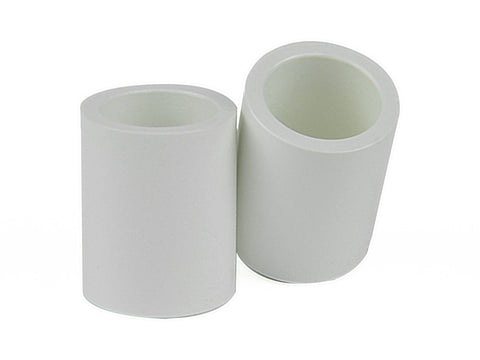

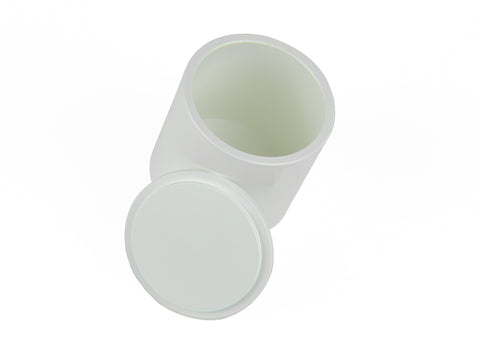

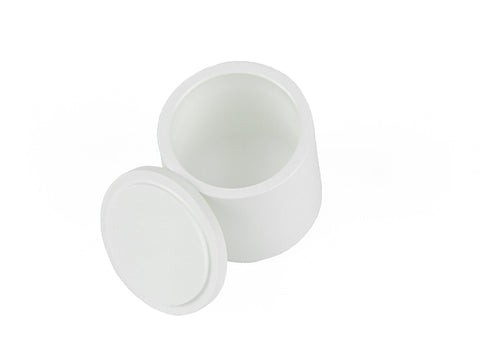

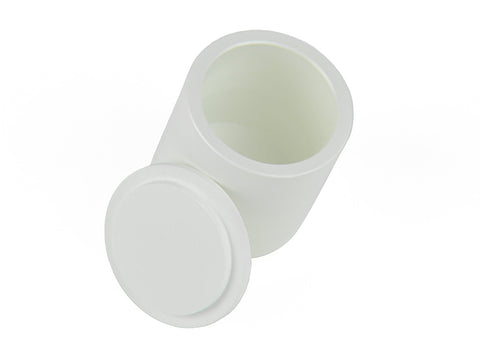

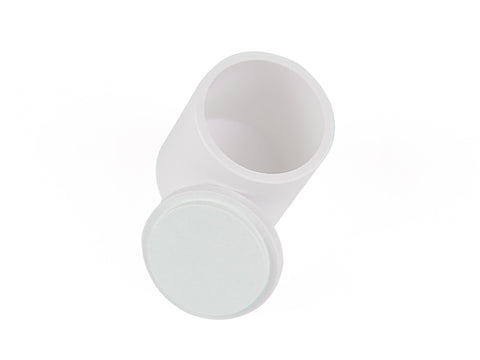

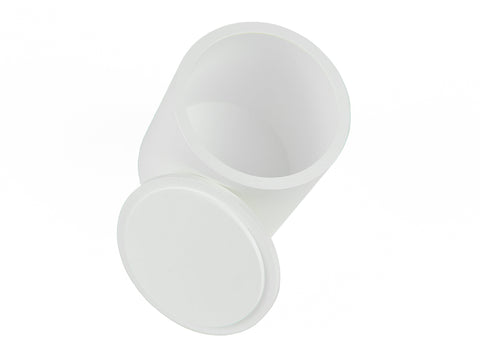

High purity boron nitride (BN) crucibles are made of >99.6% purity boron nitride. Each BN crucible includes a crucible and a lid
Boron Nitride is a synthetic technical ceramic material. It has outstanding thermal characteristics: high thermal conductivity (751 W/mK) and excellent thermal shock resistance. It is stable up to 2000 °C in reducing atmospheres, and up to 900 °C in oxidizing atmospheres. The unique property of BN crucible is that it is non-wetting with molten metal. It is widely used for crystal growth, melting metals, rare earth materials, fluorides, glass, silicon, molten salt and luminescent materials. It is ideal for oxygen sensitive applications.

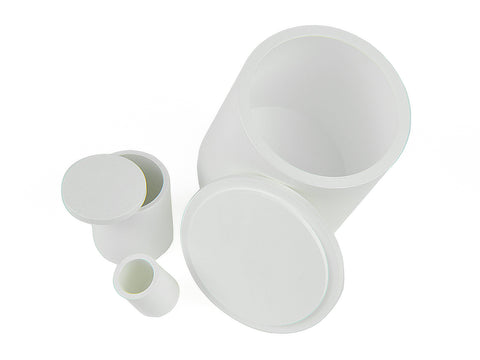

MSE Supplies offers a wide range of sizes of boron nitride (BN) crucibles for laboratory uses. If you need custom made BN crucibles, please contact us for a quote.
Maximum use temperature (under Ar/N2): 2000 °C
Maximum use temperature (under vacuum): 1800 °C
Maximum use temperature (under Air): 900 °C
|SKU#||Capacity (mL)||OD (mm)||ID (mm)||Height (mm)|
Dimensions can be customized upon request. The dimensions listed above are for reference only. Please contact us if you need tight tolerance.
- Don't use water to wash the crucible
- Store in a dry environment
- Not suitable for the use with antimony oxide, chromium oxide, molybdenum trioxide, arsenic trioxide, titanium carbide, high lead glass glaze, boron phosphate, potassium phosphate and chlorine
