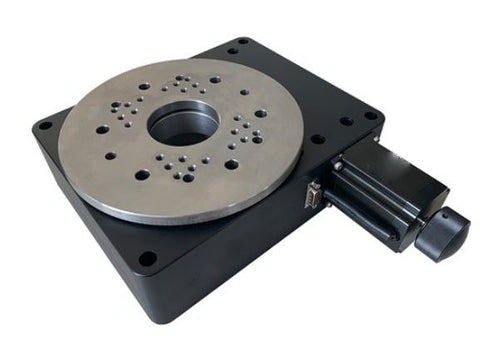

MSE PRO High Precision Motorized Aluminum Alloy Rotation Stages (Angle 360°, Φ200mm) with Zero Limit - MSE Supplies LLC

MSE PRO High Precision Motorized Aluminum Alloy Rotation Stages (Angle 360°, Φ200mm) with Zero Limit

SKU: OPMS0257

To better serve you, we would like to discuss your specific requirement.
Please Contact Us for a quote.


-Request a Quote

MSE PRO™ High Precision Motorized Aluminum Alloy Rotation Stages (Angle 360°, Φ200mm) with Zero Limit

MSE PRO™ provides High Precision Motorized Aluminum Alloy Rotation Stages (Angle 360°, Φ200mm) with Zero Limit. Motorized rotation stages are precision-engineered platforms designed for smooth and accurate rotational motion control. Powered by advanced motorized drive systems, these stages deliver exceptional angular positioning and repeatability, making them ideal for tasks requiring precise orientation adjustments. With robust construction and high load capacity, they ensure reliable performance in demanding applications such as optical experiments, laser processing, automation systems, and metrology. Compatible with various control interfaces, motorized rotation stages offer flexibility and ease of integration into complex setups, providing a perfect solution for achieving precise rotational motion in research and industrial environments.

Key Features


Angle Range  360 °
Table size φ200mm
Transmission Ratio 1801
Actuator Type Worm Gear
Travel Guide Bearing
Stepper Motor (1.8°) SST57D3301
Base Material Aluminum Alloy
Surface Treatment Black-anodized
Load Capacity 100kg
Weight 12kg
Resolution

0.01°=36″(non MicroStep)

0.0005°=1.8″(20 MicroStep Driver in use)

Speed 25°/sec
Repeatability 0.002°=7.2″
Positioning accuracy 0.005°=18″
Surface Roundness 10µ
Backlash 0.002°=7.2″
Transversal Deviation 20µ
Lost Motion 0.005°=18″
Parallelism 50µ

MSE Supplies can offer a variety of optomechanical components, with different size, freedom of regulation and optical elements combination. Please contact us for customization or bulk orders.
