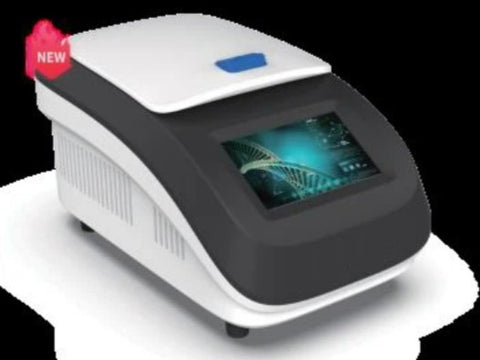

MSE PRO Gradient Thermal Cycler, 96-well
MSE PRO™ Gradient Thermal Cycler, 96-well
Gradient thermal cyclers, also known as gradient PCR machines, are used in the polymerase chain reaction (PCR) process. PCR is a technique used to amplify specific DNA sequences, allowing researchers to generate large amounts of DNA from a small starting sample. Gradient thermal cyclers allow for a temperature gradient to be established across the samples, which means that different regions of the thermal cycler block can be set at different temperatures simultaneously. This gradient feature enables researchers to optimize PCR conditions more efficiently and quickly.
Product Parameters
| SKU # | MA1017 |
Maximum Heating Rate |
4.5°C/second |
Program Stored |
>100 |
| Voltage |
110V 60Hz |
Maximum Cooling Rate |
4.0°C/second |
Max. Cycles |
99 |
| Temperature Control Methods | Block or Tube |
Gradient |
Max. 30°C, Accuracy ± 0.25°C |
Max. Steps |
30 |
| Block Temperature Range | 4-99.9°C |
Gradient Temperature Accuracy |
±0.25°C |
Program Pause Function? |
Yes |
| Timer | 1s-99min59sec or infinite |
Block Temperature Accuracy |
±0.2°C |
16°C Temperature Holding Function |
Infinite |
| Block Temperature Accuracy | ±0.2°C |
Heating Lid Temperature Range |
RT+ ~30°C-110°C |
Real-time Operation Status |
Image text displayed |
|
Block Temperature Uniformity |
±0.25°C |
Automatically Heating Lid |
Shut off automatically when sample lower than 30°C or program complete. |
Interface Port |
USB 2.0 |
|
Heating Rate (Avg.) |
3°C |
Timer Increasing Decreasing |
-599 seconds to 599 seconds for long PCR |
Dimensions (WxDxH) |
200x300x170 (mm) |
|
Cooling Rate (Avg.) |
2.5°C |
Temperature Increasing Decreasing |
-9.9 seconds to 9.9 seconds for touchdown PCR |
Weight (lbs.) |
9.9 |
|
Capacity |
96x0.2mL (PCR plate w/ semi-skirt) |
12x8x.2mL strip tubes, | 0.2mL individual tubes (height 20-23mm) |
