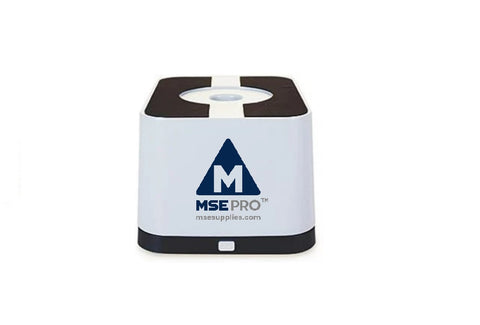

MSE PRO Portable Gel Imaging System
MSE PRO™ Portable Gel Imaging System

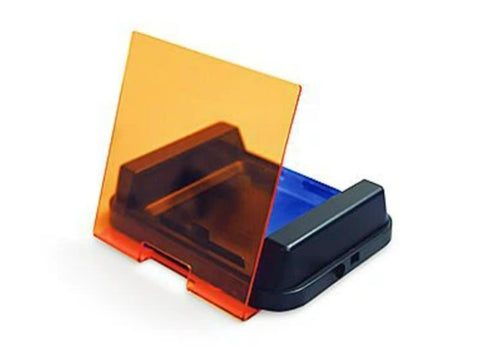

This portable gel imaging station will allow users to visually analyze gels that have been run via electrophoresis for DNA, RNA, and/or protein detection using fluorescent markers such as agarose, EB, Coomassie Brilliant Blue, Silver Stain, and SYBR Green. The system comes with an amber shield used for viewing the gel under the epi blue light.
Technical Specifications
| SKU # | MA1020 |
| Light Source | 470nm Epi Blue Light |
| White Light Plate? | Yes |
| Filter Protective Shield | Amber (Use when Viewing Gel) |
| Viewing Area | 10x10 cm |
| Compatible Dyes |
DNA: ECO Safe, SYBR Safe, GelGreen Protein: Lightning Red, Silver / Coomassie Blue, SYPRO Ruby |
| Light Source (LxWxH) | 216x168x54 mm |
| Light Source Cover (LxWxH) | 211x161x108 mm |
| Total Size (LxWxH) | 216x168x128 mm |
| Weight | 2.7 (lbs.) |
| Power Supply | 12V / 1.5A AC Power Adapter |
| Optional App | Android 4.4 and above / iOS 9.0 and above. |
